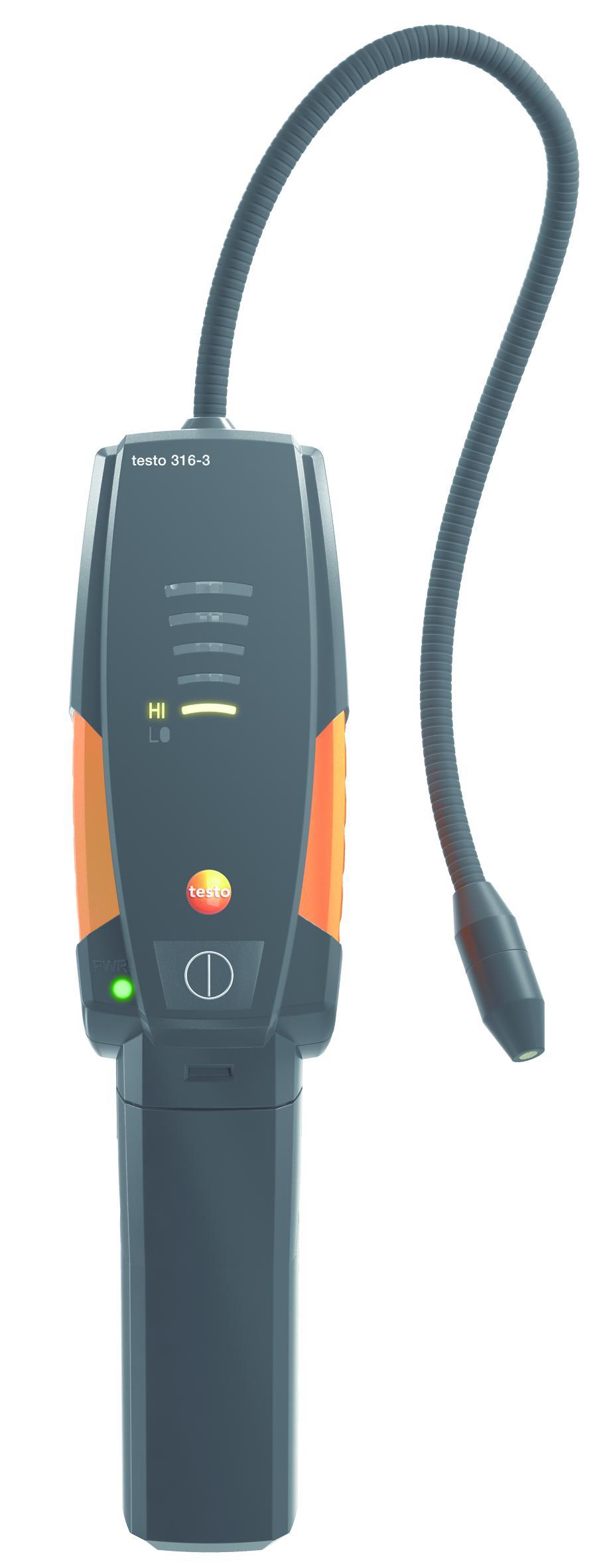

Refrigerant leak detector - Testo 316-3

Description:


The testo 316-3 refrigerant leak detector is one piece of kit every refrigerant technician would want himself to be equipped with. The handheld leak detector can detect all the most common cooling agents along with even the smallest leaks. Comes with an automatic zero setting that also enables you to locate leaks in contaminated rooms.


testo 316-3 leak detector– benefits at a glance

-  Can detect all common cooling agents: CFCs, HFCs, FCs
-  Highly sensitive( < 4 g/a - 1g/a according to DIN EN14624:2012 standard) - can
   detect even the smallest leaks
-  Ready for use – there’s no need to select cooling agent characteristics first
-  Automatic zero setting – can detect leaks in rooms that are already contaminated
-  Visual and audible alarm which are activated when a leak is detected

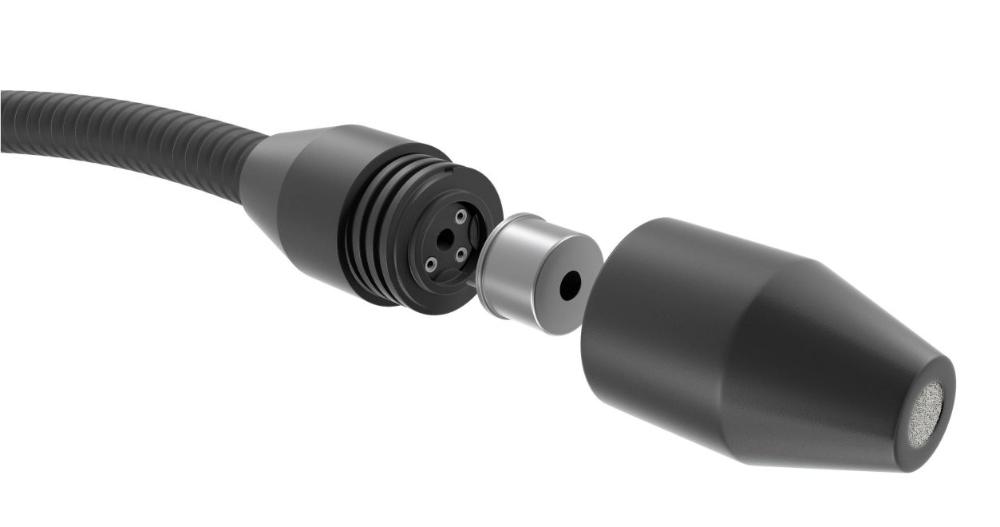

-  Quick and easy sensor change
-  Complies with specifications for F gases regulations, SAE norm J1627and DIN EN14624:2012 standard


Product Benefits:


  • High sensitivity < 4 g/a allows the detection of the smallest leaks

  • Detects all common refrigerants

  • Easiest possible operation thanks to a single button

  • Immediate readiness with no pre-settings

  • LED indicator of leakage with simultaneous audible alarm

  • Made in Germany

  • Two Years Warranty


Delivery Scope:


Testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration certificate, batteries, filter.


Technical Details:


General technical data

Operating humidity

20 to 80 %RH

Weight

500 g (incl. batteries)

Dimensions

270 x 60 x 61 mm

Operating temperature

-18 to +50 °C

Product colour

Black

Detectable

R22; R134a; R404A; R410A; R507; R438A; and

all CFCs, HFCs, and HCFCs

Sensitivity

4 g/a (0.15 oz/a)

Life-time sensor

Approx. 80 to 100 h (corresponds to approx. 1 year)

Standards

EN 14624:2012; SAE J1627

EU-/EG-guidelines

2004/108/EG

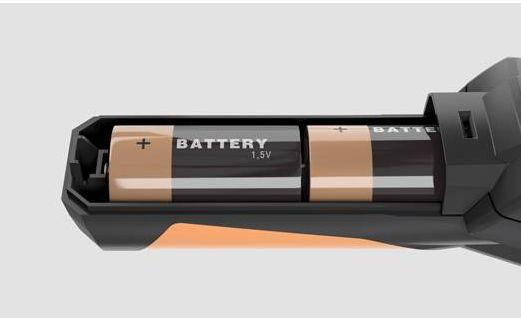

Battery type

2 x D

Battery life

16h permanent operation

Storage temperature

0 to +50 °C
