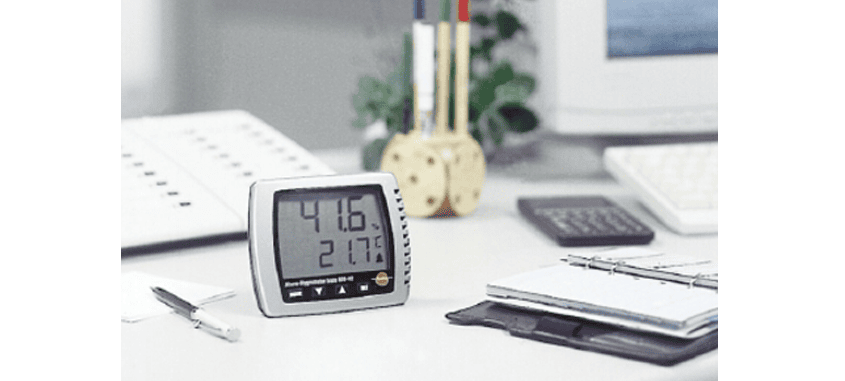

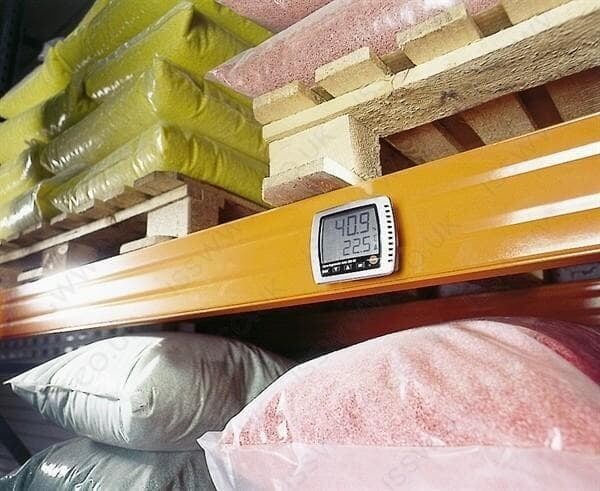

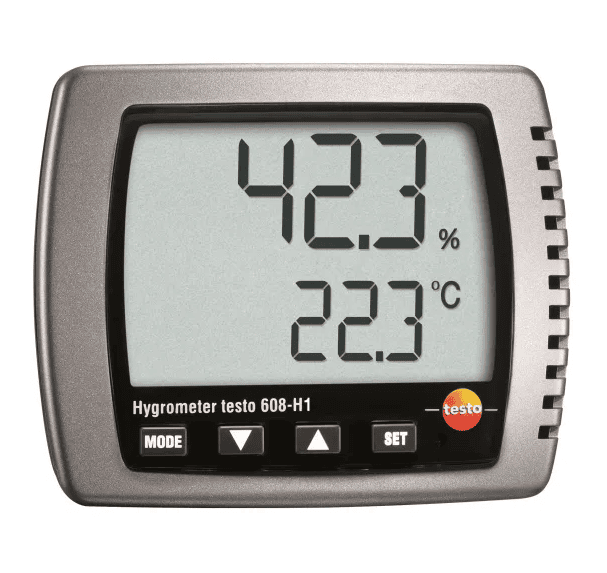

testo 608-H1 - Digital thermohygrometer
Part Number: 0560 6081
testo 608-H1 - Digital thermohygrometer
Description

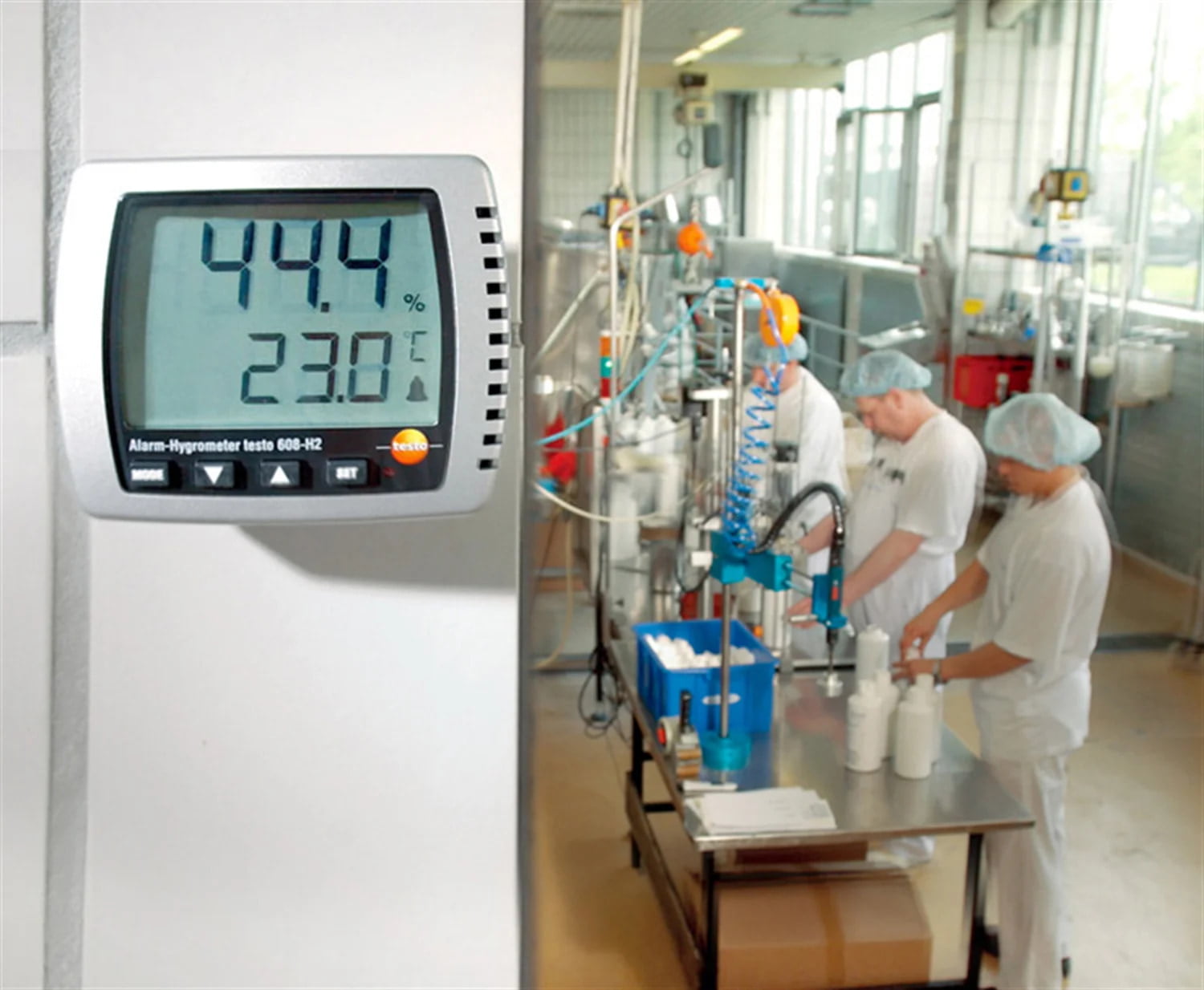

The testo 608-H1 digital thermohygrometer is ideal for continuous measurement of the indoor climate. You can therefore use the temperature and humidity measuring instrument in locations such as offices, warehouses, laboratories, garden centres or living areas to determine temperature, humidity and dew point. The hanging and standing brackets enable you to either hang the thermohygrometer on the wall or to place on a table or a shelf.
Advandages
- Calculation and display of the dew point
- Large, clear display
- Accurate measurement of temperature
- Durable quality: capacitive humidity sensor with long-term stability for many years of measurement
Delivery Scope
testo 608-H1 digital thermohygrometer including battery.
Technical Data
Temperature - NTC
| Measuring range | -20 to +50 °Ctd 0 to +50 °C |
| Accuracy | ±0.5 °C (at +25 °C) |
| Measuring rate | 18 s |
| Resolution | 0.1 °C |
Humidity - Capacitive
Humidity - Capacitive
| Measuring range | 10 to 95 %RH |
| Accuracy | long-term stability: ±1 %RH / year ±3 %RH (10 to 95 %RH) ±0.06 %RH/K (k=1) |
| Measuring rate | 18 s |
| Resolution | 0.1 %RH |
General Technical Data
| Weight | 168 g |
Dimensions | 111 x 90 x 40 mm |
| Operating temperature | 0 to +50 °C |
| Product-/housing material | ABS |
| Battery type | 9V block battery |
| Battery life | 15 h |
| Storage temperature | -40 to +70 °C |
| Display type | LCD |
| Battery life | approx. 1 year |
Download the datasheet for comprehensive product information
Access product manuals for detailed guidance and instructions
Submit an inquiry for further assistance or information!

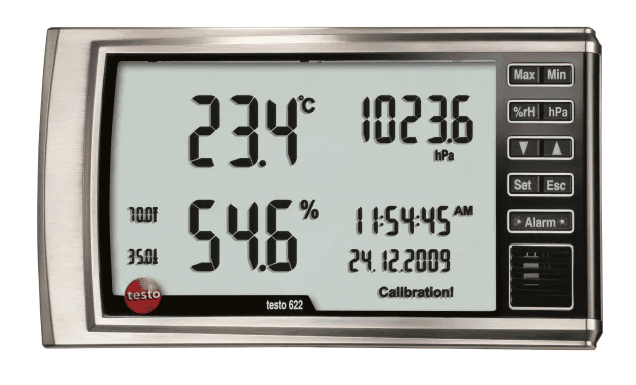

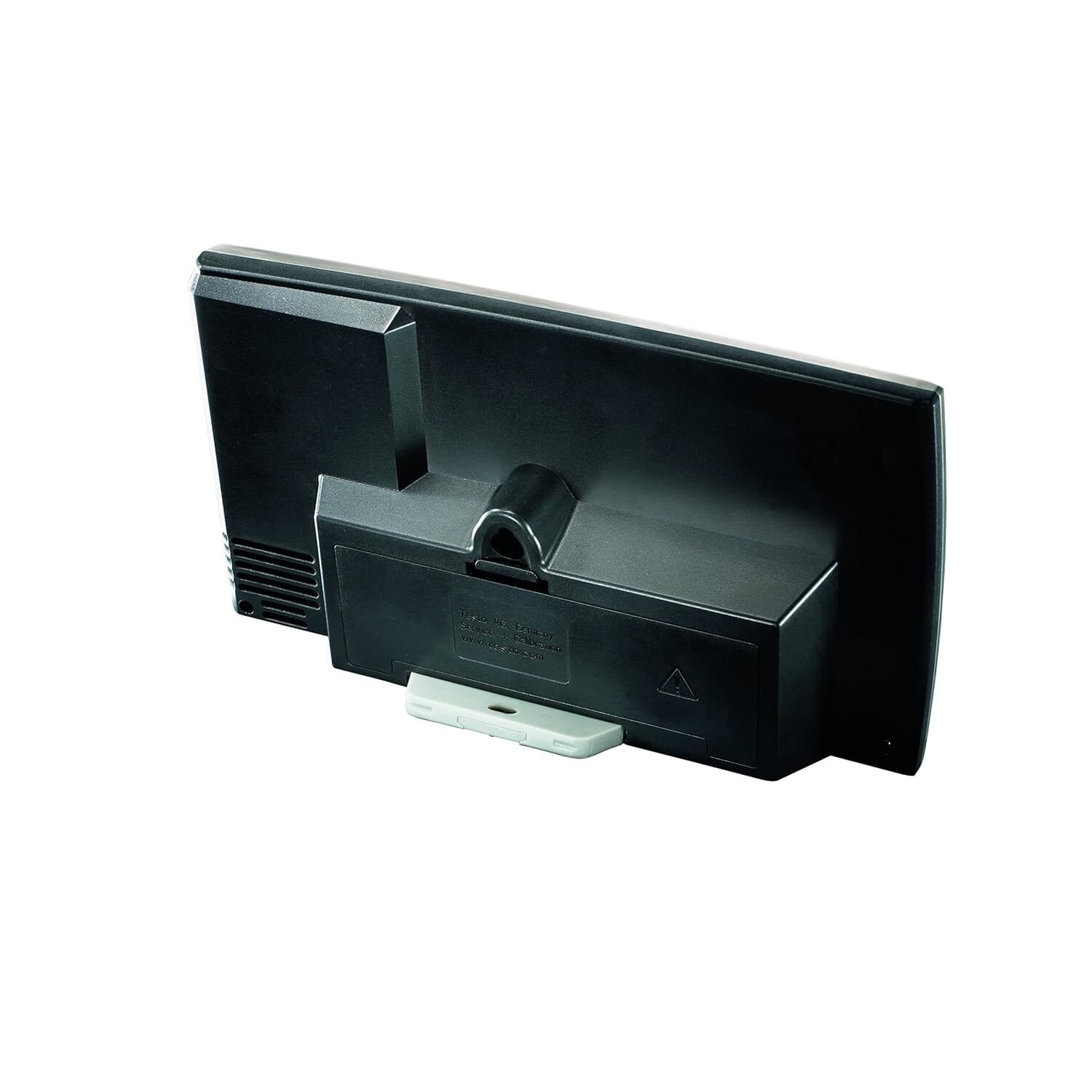

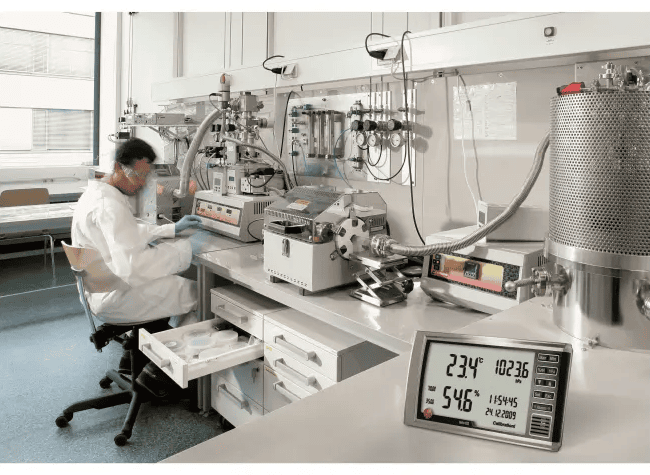

Testo 622 - Digital hygrometer and barometer
Part Number: 0560 6220
Testo 622 - Digital hygrometer and barometer
Description
The testo 622 digital hygrometer and barometer is ideal for monitoring the ambient air. The meter measures the air temperature, relative humidity and the air pressure at a rate of once every ten seconds and displays the values – including the time and date – on the large easy-to-read display. A visual LED alarm alerts the room’s occupants when the threshold is exceeded.
Advandages
- Measures air temperature, relative humidity and pressure
- Measurement frequency of once every ten seconds
- Alarm alerts when threshold is exceeded
- Table or wall mount
Delivery Scope
testo 622 thermo hygrometer and barometer, calibration protocol, wall and table mount, 4 x AA batteries.
Technical Data
Temperature - Infrared
| Measuring range | -30 to +400 °C |
| Accuracy | ±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C) ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies) |
| Measuring rate | 0.5 s |
| Infrared resolution | 0.1 °C |
General Technical Data
| Weight | 200 g |
Dimensions | 190 x 75 x 38 mm |
| Operating temperature | -20 to +50 °C |
| Infrared resolution | 0.1 °C |
| Product-/housing material | ABS |
| Battery type | 9V block battery |
| Battery life | 15 h |
| Storage temperature | -40 to +70 °C |
Download the datasheet for comprehensive product information
Access product manuals for detailed guidance and instructions
Submit an inquiry for further assistance or information!

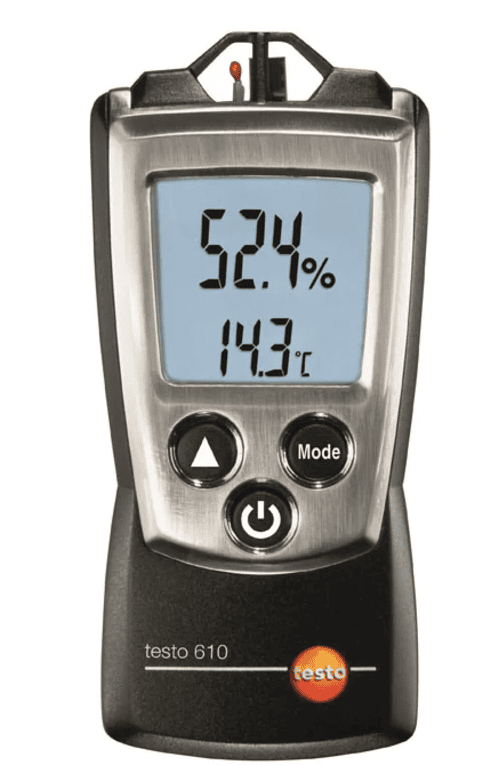

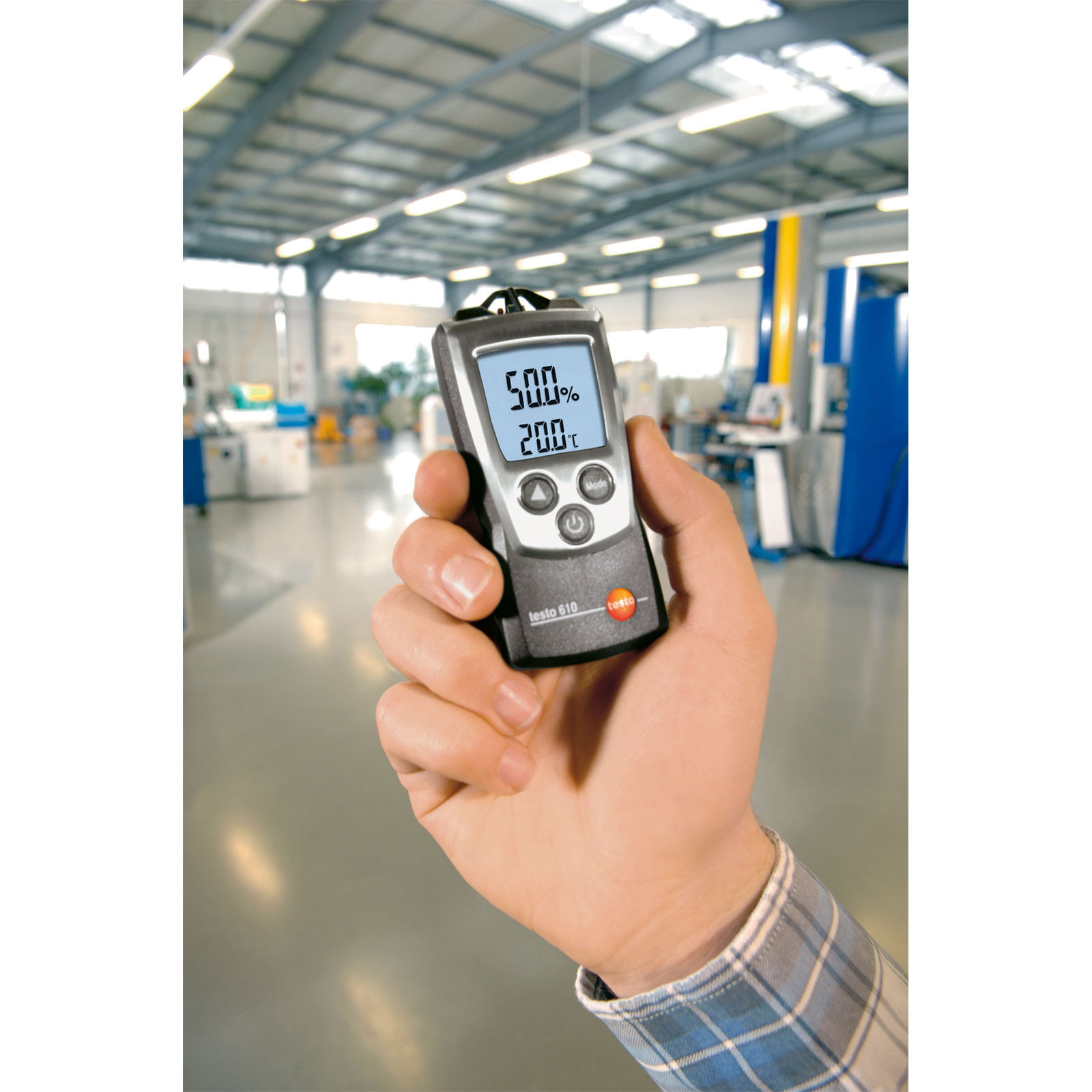

Testo 610 - thermo-hygrometer
Part Number: 0560 0610
Testo 610 - thermo-hygrometer
Description
The testo 610 thermo-hygrometer enables fast and precise measurement of temperature and humidity in indoor areas, for example in offices, warehouses, production facilities or server rooms. Furthermore, the user-friendly measuring instrument can calculate both dew point and wet bulb temperature for you. Both values serves as important factors in terms of assessing the indoor climate as they enable you to conclude the relationship between temperature and humidity.
Advandages
- Calculation of dew point and wet bulb temperature
- Illuminated display
- Capacitive humidity sensor with long-term stability
- NTC temperature sensor provides great accuracy
Delivery Scope
Testo 610 thermo-hygrometer, including protective cap, calibration protocol, belt pouch and batteries.
Technical Data
Temperature - Infrared
| Measuring range | -30 to +400 °C |
| Accuracy | ±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C) ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies) |
| Measuring rate | 0.5 s |
| Infrared resolution | 0.1 °C |
General Technical Data
| Weight | 200 g |
Dimensions | 190 x 75 x 38 mm |
| Operating temperature | -20 to +50 °C |
| Infrared resolution | 0.1 °C |
| Product-/housing material | ABS |
| Battery type | 9V block battery |
| Battery life | 15 h |
| Storage temperature | -40 to +70 °C |
Download the datasheet for comprehensive product information
Access product manuals for detailed guidance and instructions
Submit an inquiry for further assistance or information!

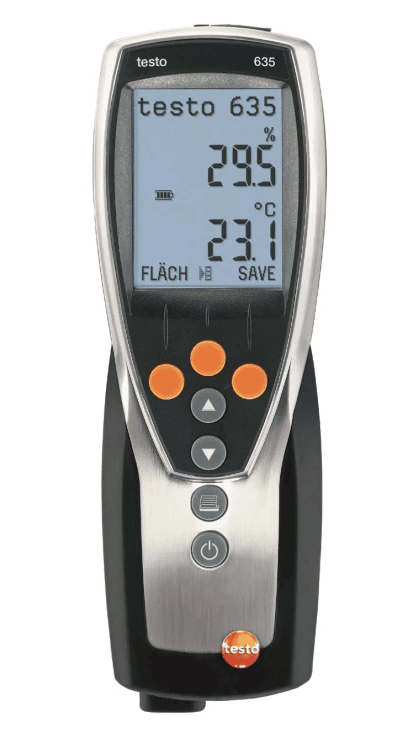

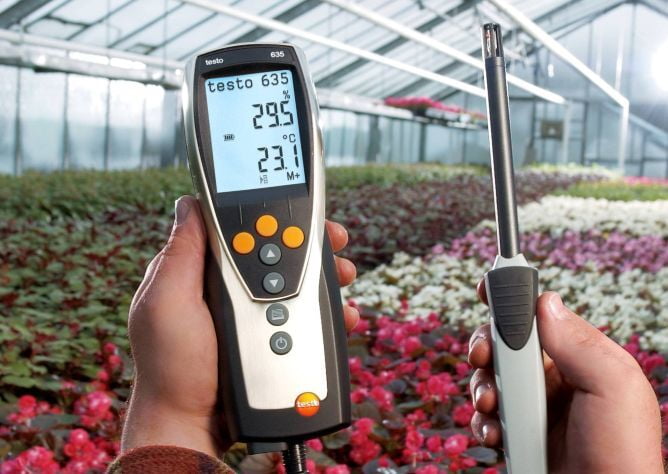

Testo 635-1 - Humidity measuring instrument
Part Number: 0560 6351
Testo 635-1 - Humidity measuring instrument
Description
The testo 635-1 for temperature and humidity measurement is ideally equipped for checking the air humidity, temperature and dew point in living areas, in production, storage and server areas and in museums and cold stores. It also aids the measurements of the ambient absolute pressure and dew point in compressed air can be quickly and efficiently.
Attachable optional probes are available for recording the following values:
• Air humidity
• Material moisture
• Pressure dew point in compressed air
• Air temperature
• Surface temperature
• Core temperature
• U-value
• Absolute pressure
The testo 635-1 for temperature and humidity measurement has two probe inputs for plug-in probes with cables. In addition, upto three further temperature or humidity probes can be displayed with the testo 635-1 via radio-controlled data transmission i.e. wireless.
Advandages
- Measures air humidity, temperature, absolute pressure and dew point in compressed air
- Optional attachable probes
- Display of min., max. and mean values
- Cyclical printing of readings at freely adjustable intervals
Delivery Scope
testo 635-1 temperature and humidity measuring instrument, including calibration protocol and batteries.
CAUTION: The instrument can only be commissioned with a probe. These are available separately.
Technical Data
Temperature - Infrared
| Measuring range | -30 to +400 °C |
| Accuracy | ±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C) ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies) |
| Measuring rate | 0.5 s |
| Infrared resolution | 0.1 °C |
General Technical Data
| Weight | 200 g |
Dimensions | 190 x 75 x 38 mm |
| Operating temperature | -20 to +50 °C |
| Infrared resolution | 0.1 °C |
| Product-/housing material | ABS |
| Battery type | 9V block battery |
| Battery life | 15 h |
| Storage temperature | -40 to +70 °C |
Download the datasheet for comprehensive product information
Access product manuals for detailed guidance and instructions
Submit an inquiry for further assistance or information!

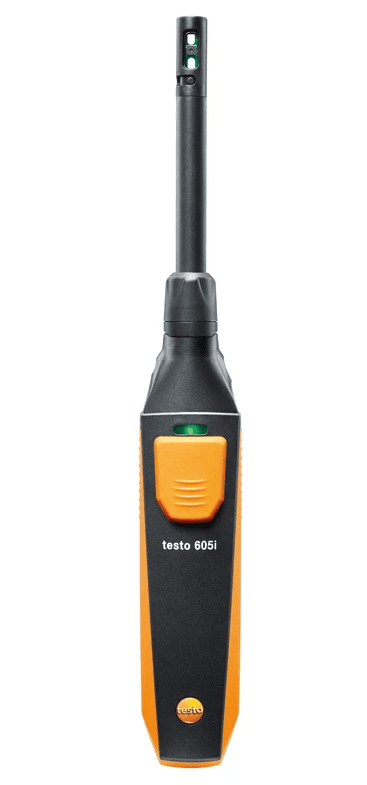

Testo 605i - Thermohygrometer operated via smartphone
Part Number: 0560 2605 02
Testo 605i - Thermohygrometer operated via smartphone
Description

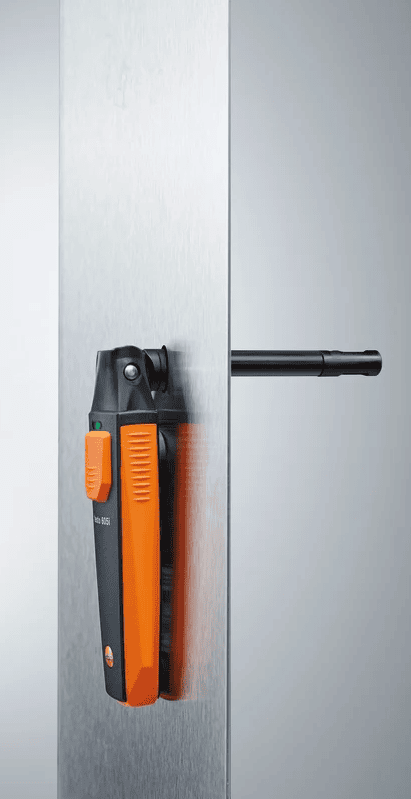

In addition to measuring air temperature and relative humidity in rooms and ducts, the thermohygrometer is also suitable for checking air conditioning system humidifiers. When you use the testo 605i in conjunction with the testo 805i infrared thermometer, you can clearly identify areas susceptible to mould via the traffic light principle, with the assistance of a measurement menu that is already stored in the App.
Advandages
- Measurement of air humidity and temperature in rooms and ducts

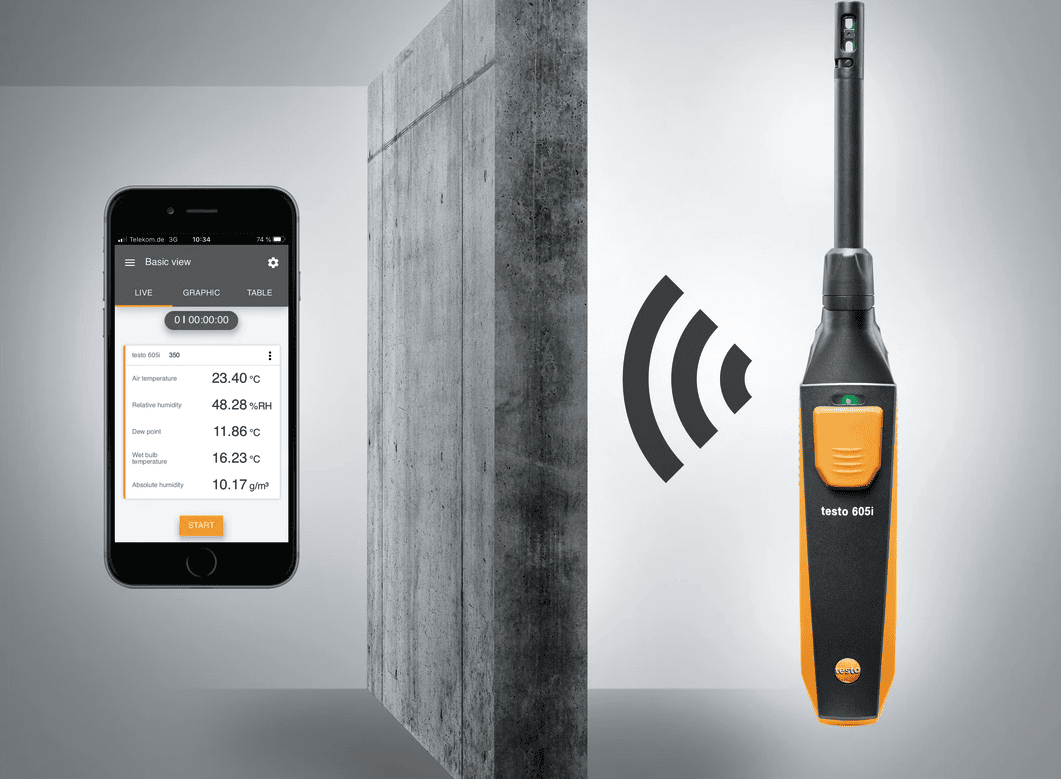

- Automatic calculation of the dew point and wet bulb temperature via testo Smart App
- Measurement data analyzed and sent via testo Smart App
- Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m
Delivery Scope
1 x testo 605i thermohygrometer operated via smartphone, including batteries and calibration protocol.
Technical Data
Temperature - Infrared
| Measuring range | -30 to +400 °C |
| Accuracy | ±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C) ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies) |
| Measuring rate | 0.5 s |
| Infrared resolution | 0.1 °C |
General Technical Data
| Weight | 200 g |
Dimensions | 190 x 75 x 38 mm |
| Operating temperature | -20 to +50 °C |
| Infrared resolution | 0.1 °C |
| Product-/housing material | ABS |
| Battery type | 9V block battery |
| Battery life | 15 h |
| Storage temperature | -40 to +70 °C |
Download the datasheet for comprehensive product information
Access product manuals for detailed guidance and instructions
Submit an inquiry for further assistance or information!

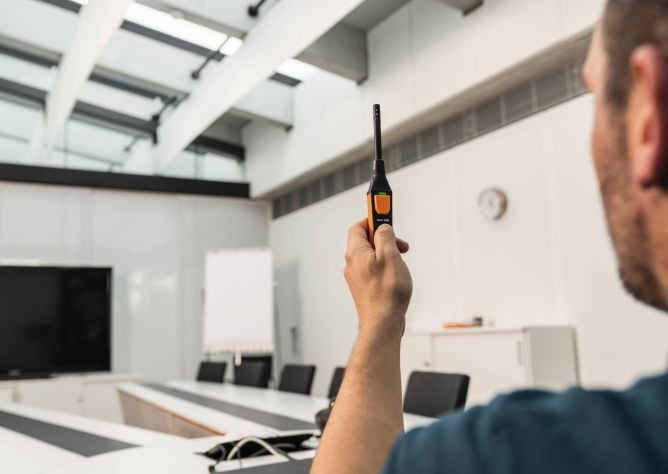

Humidity meters with-smartphone-operation
605i PN: 0560 2605 02
Smart Probes HVAC/R Ultimate kit PN: 0563 0002 31
Smart Probes VAC kit PN: 0563 0003 10
Smart Probes VAC set - with smartphone operation PN: 0563 0003
Smart Probes mould kit PN: 0563 0005 10
Smart Probes AC & refrigeration test kit plus PN: 0563 0002 41

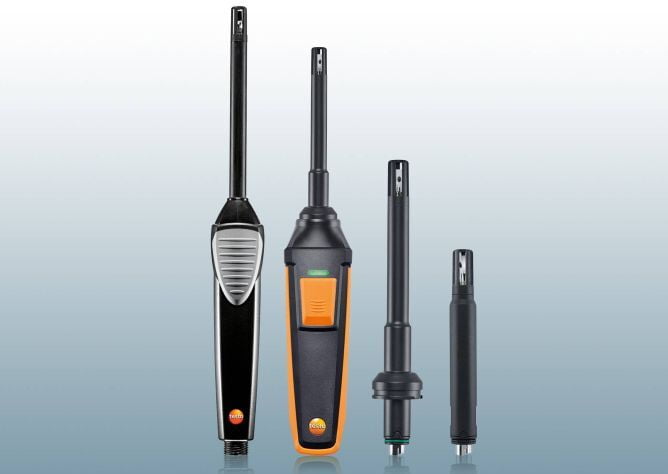

Humidity probes
Smart Probes VAC kit PN: 0563 0003 10
Smart Probes mould kit PN: 0563 0005 10
Smart Probes AC & refrigeration test kit plus PN: 0563 0002 41
605i PN: 0560 2605 02
Temperature probe PN: 0636 9735
Temperature probe Ø 12 mm PN: 0636 9743
Robust humidity probe PN: 0636 2161
Compact professional humidity module PN: 0636 9736
Reference humidity/temperature probe PN: 0636 9741
Standard humidity/temperature probe (Ø 21 mm) PN: 0636 9740
Thin humidity probe - for material moisture PN: 0636 2135
Robust high-temperature/humidity probe (up to +180 °C) PN: 0628 0021
Flexible humidity probe PN: 0628 0022
Humidity/temperature probe PN: 0636 9742
Precision pressure dewpoint probe PN: 0636 9841
Thin humidity probe incl. 4 attachable protection caps PN: 0636 2130
Standard pressure dewpoint probe PN: 0636 9840
High humidity level probe w/ heated sensor element PN: 0636 2142
High-precision humidity/temperature probe - with Bluetooth® PN: 0636 9771
Humidity/temperature probe (digital) - wired PN: 0636 9732
