Smart Thermal Anemometer - Testo 405i

Description:

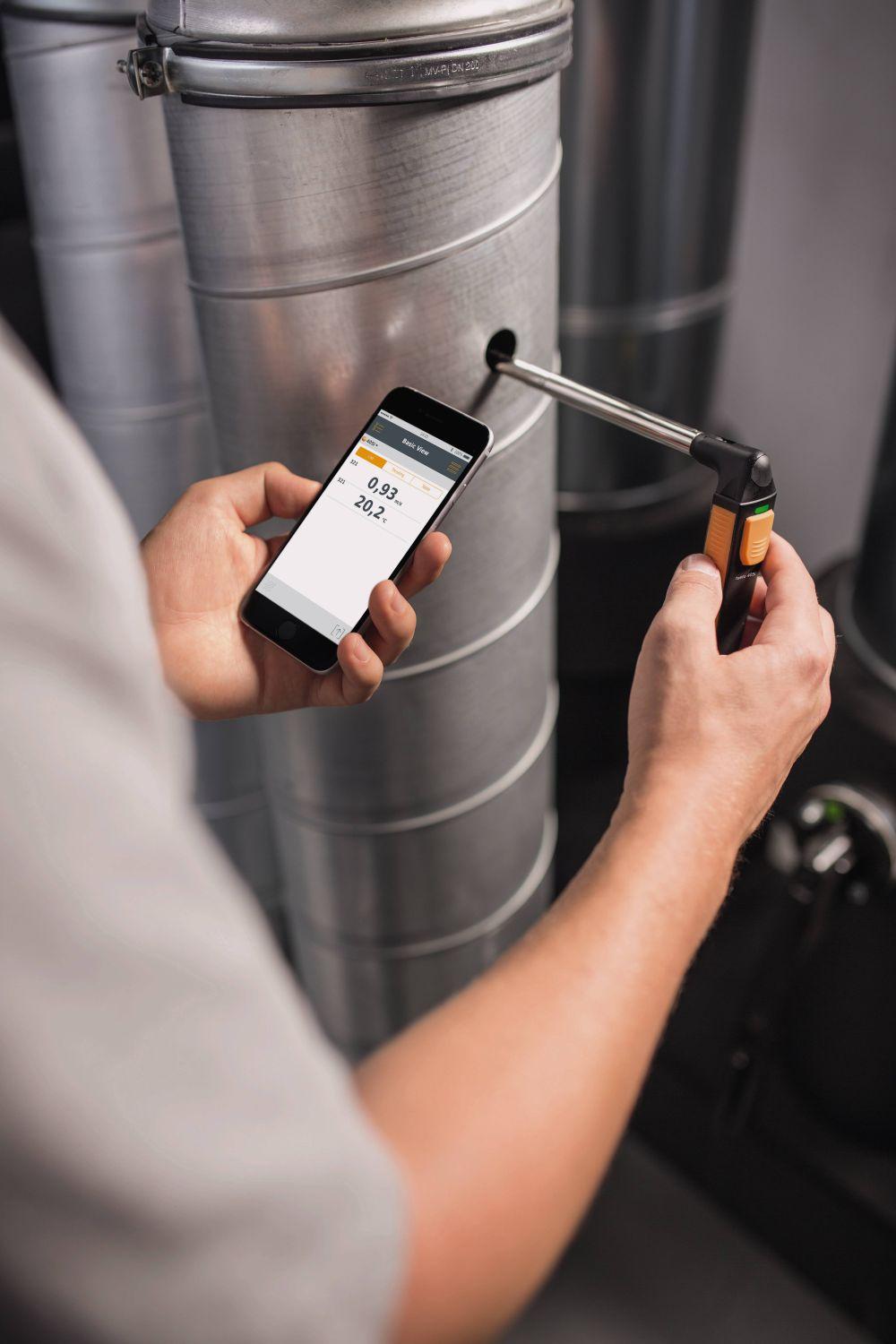

No more surprises: the testo 405i thermal anemometer with smartphone operation from the Testo Smart Probes series is ideal for carrying out measuring tasks in ventilation ducts. It is easy to use the anemometer to determine air velocity, temperature and volume flows. The testo 405i is also suitable for measuring indoor air velocity. Practical when, for example, you want to locate non-airtight windows. Cooling capacities and heating outputs can also be calculated when used in conjunction with the testo 605i thermohygrometer.

Operation independent of measuring location via your smartphone The testo 405i hot wire anemometer combines professional Testo measuring technology with App-based operation. This means you benefit from numerous additional functions in your day-to-day work. With the testo Smart Probes App, you can view readings conveniently on your smartphone or tablet. You no longer have to spend ages trying to make out the display at poorly accessible points. Volume flow can also be measured easily using the App: following intuitive input of the duct cross-section, the App calculates this completely automatically.

The App opens up other practical options too: it not only displays measurement data, but also evaluates and documents it. It is easy to carry out a timed and multi-point mean calculation with the App. It also displays the measurement data curve at the press of a button. And sends the measurement data logs as PDF or Excel files.



System requirements:


iOS 8.3 or later Android 4.3 or later Bluetooth 4.0.


Product Benefits:


  • Compact professional measuring instrument from the Testo Smart Probes series, for use with smartphones/tablets

  • Measurement of air flow velocity, temperature and volume flow

  • Easy configuration (dimensions and geometry) of the duct cross-section for determining volume flow

  • Measurement data analyzed and sent via testo Smart Probes App

  • Telescopic shaft, extendable up to 400 mm

  • Space-saving and easy to transport

  • Made in Germany

  • Two Years Warranty

Delivery Scope:


Testo 405i thermal anemometer with smartphone operation, including extendable (400 mm) telescope, batteries and calibration protocol.


Technical Details:


Temperature - NTC

Measuring range

-20 to +60 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Velocity - Hot wire

Measuring range

0 to 30 m/s

Accuracy

±(0.1 m/s + 5 % of mv) (0 to 2 m/s)

±(0.3 m/s + 5 % of mv) (2 to 15 m/s)

Resolution

0.01 m/s

General technical data

Weight

119.6 g

Dimensions

200 x 30 x 41 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer;

requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

15 h

Length probe shaft

400 mm

Storage temperature

-20 to +60 °C
