Voltage tester Testo 750 in comparison
Common features:
Voltage testing: 12 to 690 V AC/DC, Continuity testing: < 500 kΩ
Rotating magnetic field testing 100 to 690 V AC at 50/60 Hz
Measurement category: CAT IV 600 V CAT III 1,000 V, Protection class: IP64
Operating temperature: -10 to +50 °C, Storage temperature: -15 to +60 °C,
Authorizations: TÜV, CSA, CE, Standards: EN 61243-3:2010

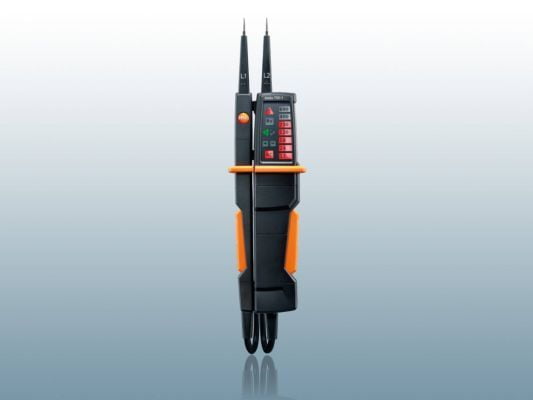

Testo 750-1, voltage tester including batteries, measuring tip protector and measuring tip caps
Order no. 0590 7501
Voltage testing: 12 to 690 V AC/DC
Continuity testing: < 500 kΩ
Rotating magnetic field testing: 100 to 690 V
RCD/RC trigger function: -
LC display: -
Measuring point illumination: -
Single pole phase testing: -
Dimensions: 270 x 65 x 35 mm
Weight: 230 g

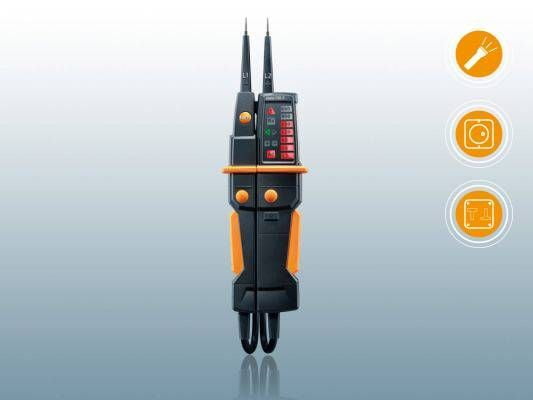

testo 750-2, voltage tester including batteries, measuring tip protector and measuring tip caps
Order no. 0590 7502
Voltage testing:12 to 690 V AC/DC
Continuity testing: < 500 kΩ
Rotating magnetic field testing: 100 to 690 V
RCD/RC trigger function: Yes
LC display: -
Measuring point illumination: Yes
Single pole phase testing: 100 to 690 V
Dimensions: 270 x 70 x 35 mm
Weight: 295 g

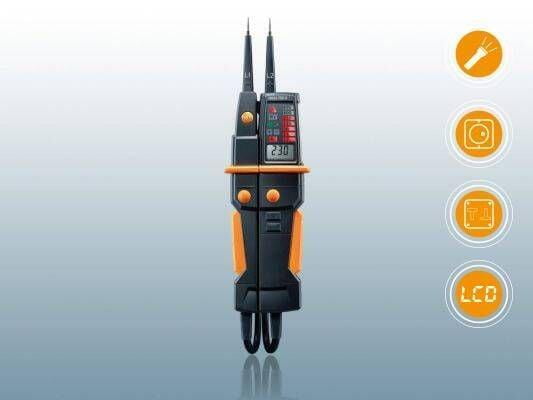

Testo 750-3, voltage tester including batteries, measuring tip protector and measuring tip caps
Order no. 0590 7503
Voltage testing: 12 to 690 V AC/DC
Continuity testing: < 500 kΩ
Rotating magnetic field testing: 100 to 690 V
RCD/RC trigger function: Yes
LC display: Yes
Measuring point illumination: Yes
Single pole phase testing: 100 to 690 V
Dimensions: 270 x 70 x 35 mm
Weight: 295 g
