Testo 883 - Thermal Imager

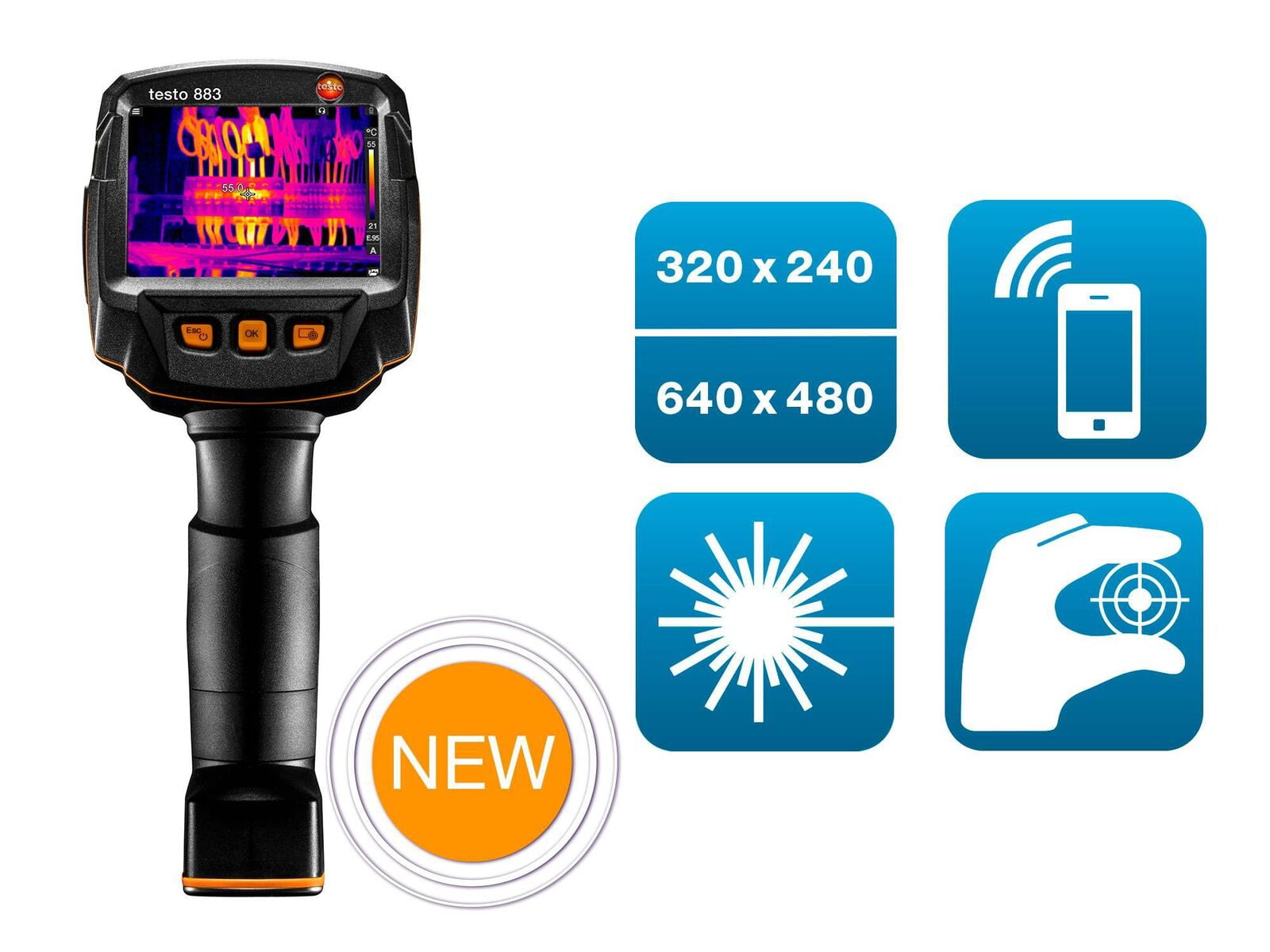

IR resolution of 320 x 240 pixels (with Super Resolution 640 x 480 pixels), manual focus and a very good NETD of 40 mK all ensure the best image quality – so you can reliably detect thermal abnormalities in installations and buildings
testo Site Recognition enables intelligent image management. Thermal images are automatically assigned to the correct measurement object based on the QR code at the measuring location – this eliminates the need for tedious, manual image assignment on the PC
testo IRSoft: Analyze thermal images comprehensively with the intuitive, professional PC software and create impressive reports within a short period of time
testo Scale Assist: Automatic contrast adjustment for objectively comparable thermal images and easier detection of weak spots
testo Thermography App: With the app, your smartphone/tablet becomes a second display and a remote control for your thermal imager. You can quickly create, send or save reports on site
Interchangeable telephoto lens for distant objects and outdoor recording
Manual focus for sharp thermal images from a distance of 10 cm
Can be operated via touchscreen and joystick
Wireless transmission of readings from clamp meter or humidity probe directly into the thermal image via Bluetooth^®

Further advantages for service engineers and facility managers

Easy to handle – clever management of images and data thanks to testo Site Recognition: automatic assignment of thermal images to the correct measurement object using QR code, Data Matrix code, barcode or Testo 2D code, transfer of measuring locations from existing inventory lists, export of work results (in .xls format) enables further processing in third-party programs
Smart: Carry out quick analyses directly on site with the testo Thermography App and share thermal images with colleagues straight away

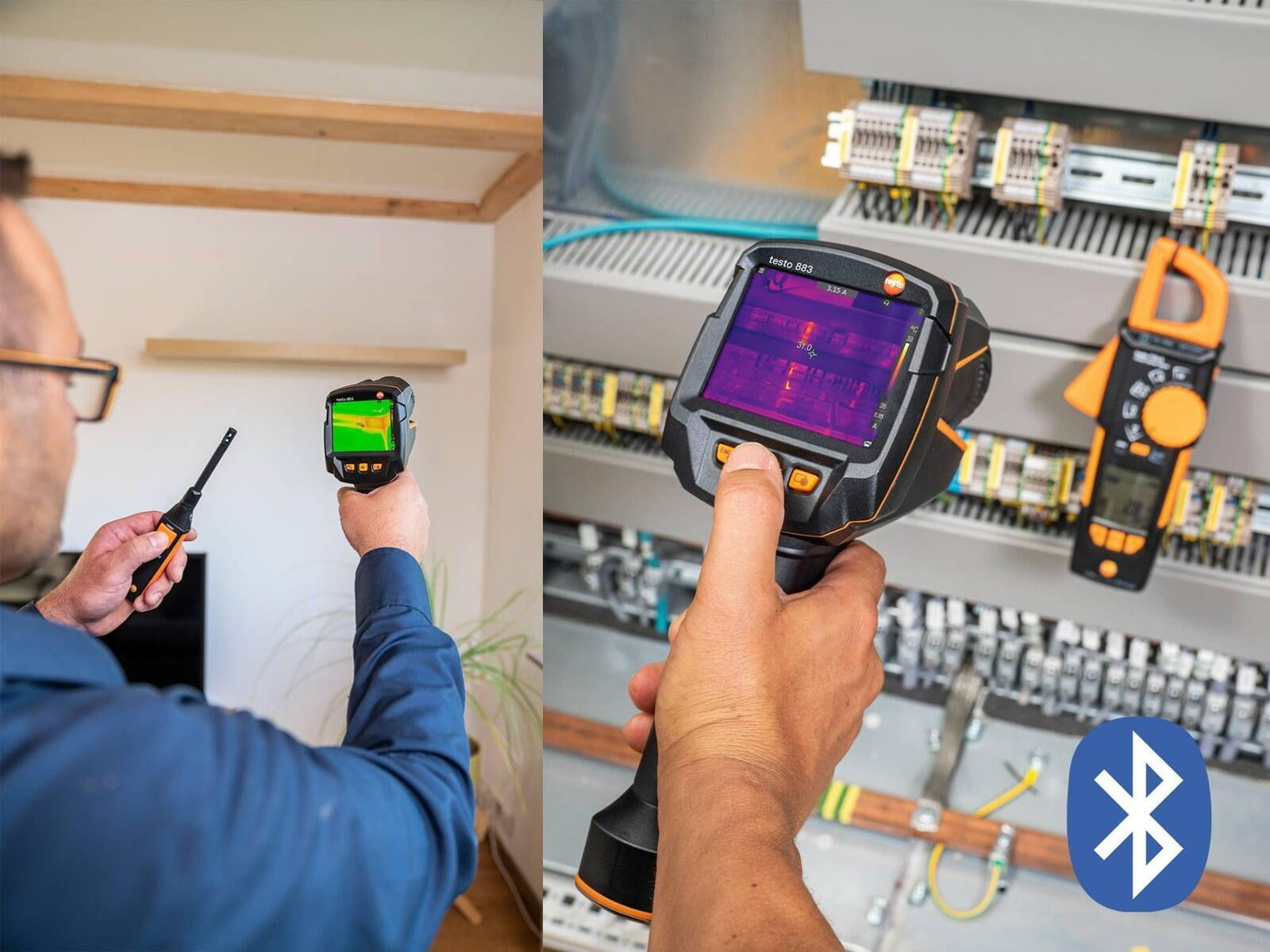

Networked: Wireless transmission of readings from the Testo clamp meter directly into the thermal image – this enables you to document the load status directly in the thermal image when checking switching cabinets, for example, and to reliably assess the condition of the system
Intuitive operation via touchscreen and joystick

Further advantages for building energy consultants

Produce a professional report quickly and easily: The report wizard guides you step by step through the report creation process using stored standard templates. Or you can use the report designer to create customized templates
Clever: The humidity mode visualizes the risk of mould at thermal weak spots directly in the thermal image using traffic light colours (red, yellow, green)
Smart: Thermography and live streaming – with the testo Thermography App, your customer can conveniently follow the measurement on a smartphone/tablet
Networked: Wireless transmission of readings from the optional humidity probe live in humidity mode – your values are always up to date, e.g. when you change rooms
Flexible: Interchangeable lenses and manual focus for sharper images and more accurate results from different distances

Termovisores garantia

EU-/EG-guidelines

RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006

General technical data

Infrared image output

Infrared resolution	320 x 240 pixel
Thermal sensitivity	˂ 40 mK
Field of view	30° x 23° (Standard lens), 12° x 9° (Telephoto lens)
Minimum focus distance	< 0.1 m (Standard lens)
Geometric resolution (IFOV)	1.7 mrad (standard lens), 0.7 mrad (telephoto lens)
SuperResolution (Pixel)	640 x 480 pixels
SuperResolution (IFOV)	1.3 mrad
Image refresh rate	27 Hz
Focus	manual
Spectral range	7.5 to 14 µm

* Inside the EU, outside 9 Hz

Image output visual

Image size	3 MP
Minimum focus distance	< 0.4 m

Image presentation

Display type	8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
Digital zoom	2x; 4x
Display option	IR image / real image
Colours	iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette

Measurement
