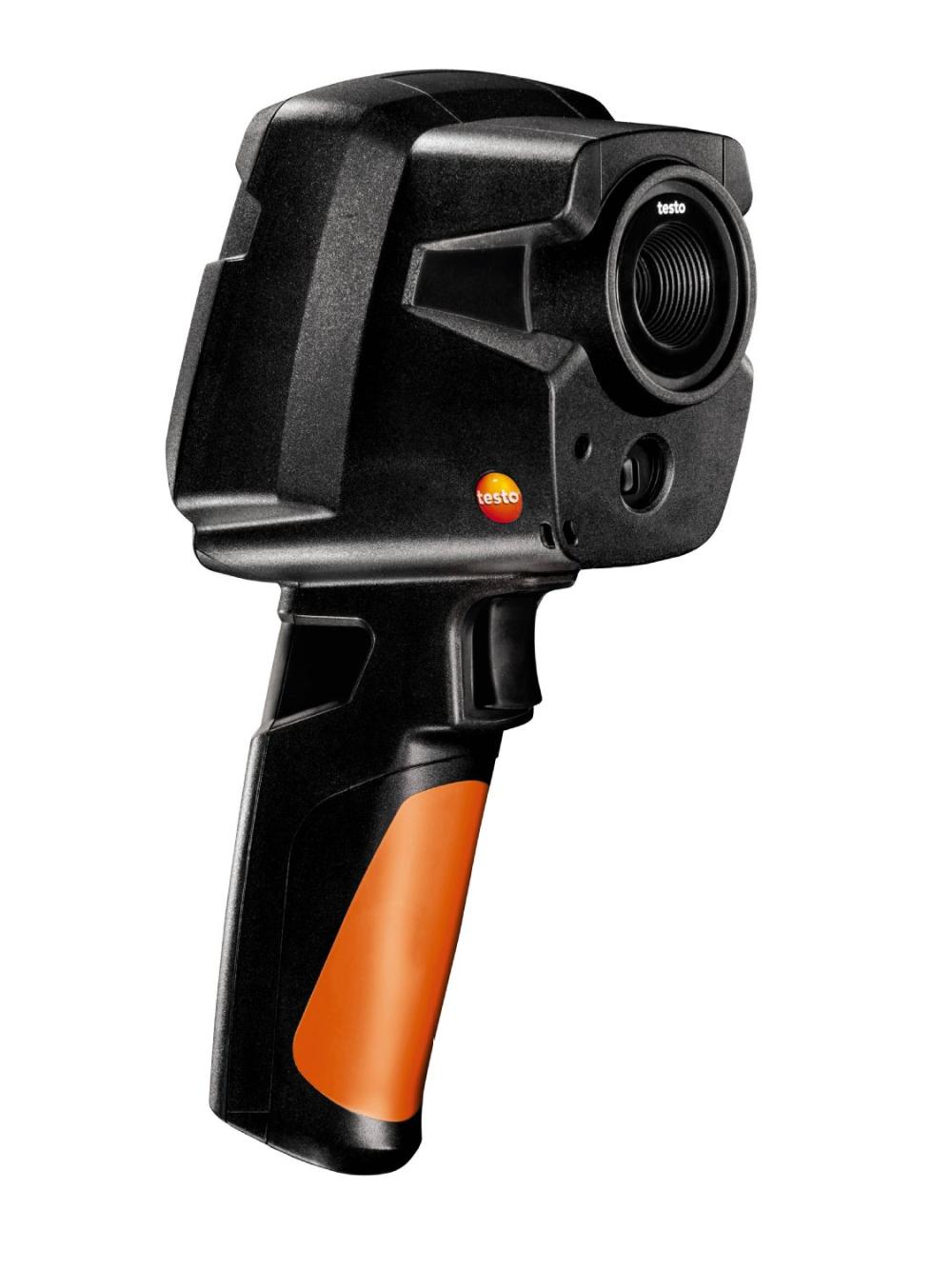

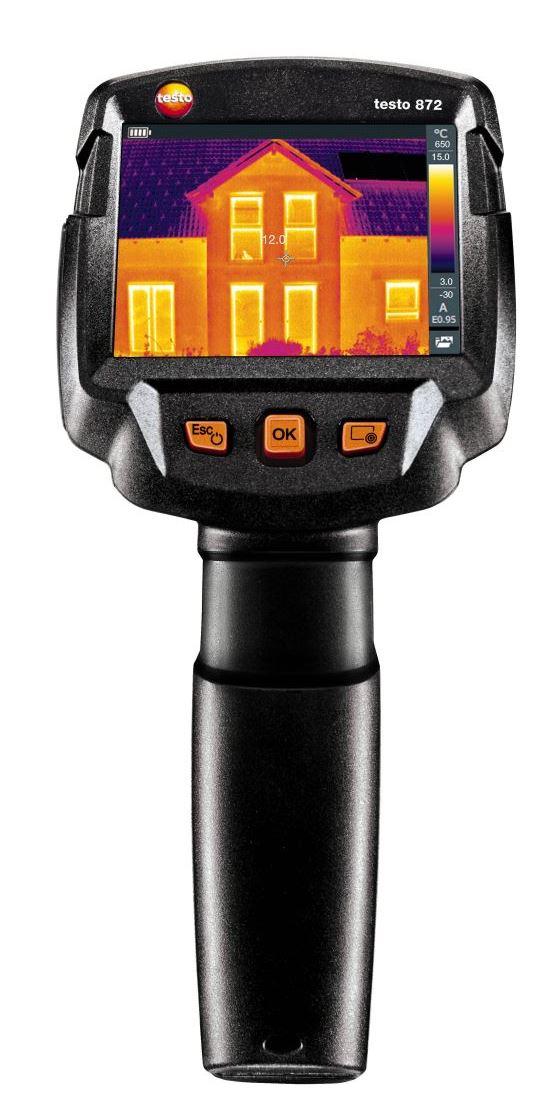

Networked Smart Thermal Imager – Testo 872
Description:

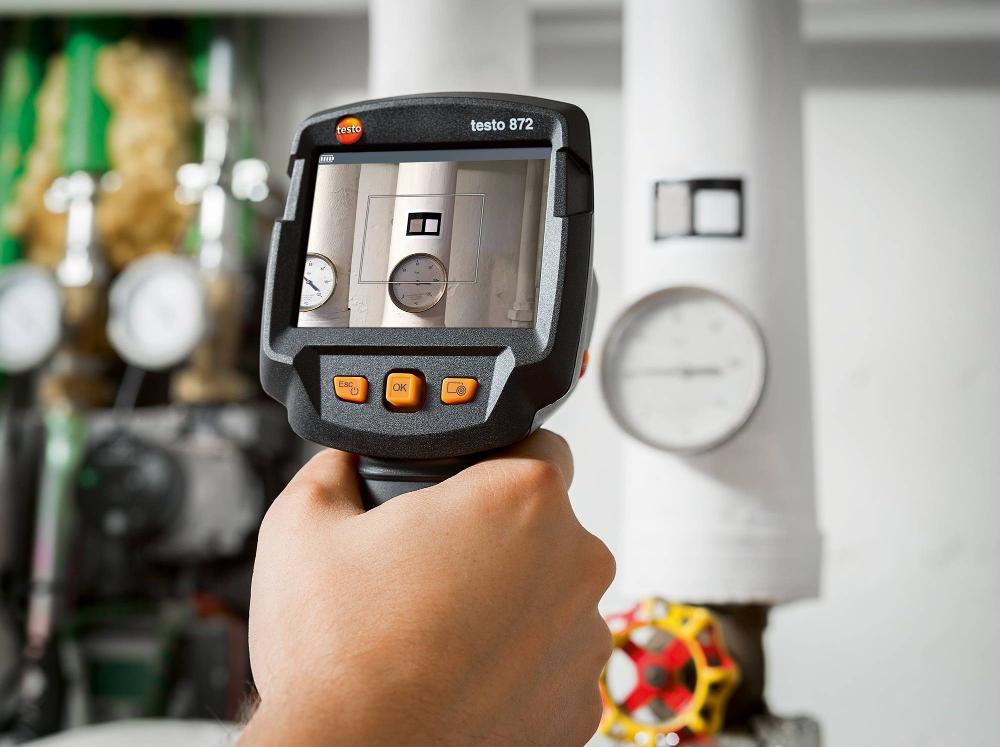

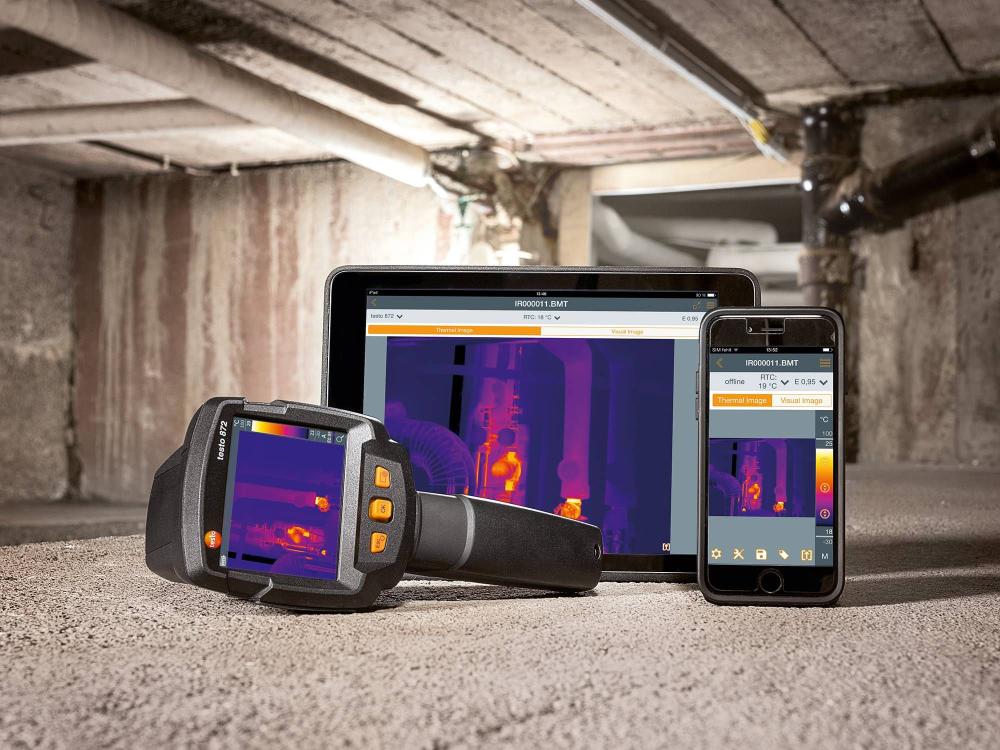

The testo 872 thermal imager is ideally suited for professional industrial and building thermography - at the same time it ensures your work is both quick and easy. It is versatile to use, for example in industrial and mechanical maintenance or for detecting structural defects. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of thermal image scale. The testo 872 thermal imager– smart and networked The testo 872 thermal imager guarantees wireless communication with mobile terminal devices via WLAN. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control. The testo 872 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and testo 605i thermohygrometer. Both are available separately – simply order them straight away along with your testo 872. The thermal imager wirelessly integrates the measurement results of these measuring instruments via Bluetooth. The additional output, current and voltage values of the testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the testo 605i humidity measuring instrument and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle. Areas of application of the testo 872 thermal imager Detect locations at risk of developing mould, pinpoint thermal bridges, discover structural defects or identify overheated connections. The testo 872 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects. Technical highlights of the testo 872 thermal imager The testo 872 thermal imager is characterized by its easy handling and its outstanding image quality. Its technical features are impressive: Highest image quality thanks to high resolution: 76,800 temperature measuring points for precise thermography. Infrared resolution of 320 x 240 pixels – extendible to 640 x 480 pixels via integrated SuperResolution Technology Detecting temperature differences from as little as 0.06°C testo Thermography App to use mobile terminal devices as a second display and for remote control or to write and send reports, along with saving them online Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the compatible testo 770-3 clamp meter and testo 605i thermohygrometer Built-in digital camera and laser marker generate a real image in parallel to the thermal image Critical temperature conditions are directly displayed via automatic hot-cold spot recognition The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings The testo ɛ-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure Pro software for image evaluation on the PC. You can choose to save thermal images as JPEGs.
Major Features:
- Infrared resolution 320 x 240 pixels and 640 x 480 pixels with testo Super Resolution technology.
- Thermal sensitivity 60 mK
- Integrated digital laser marker
- Free testo Thermography App

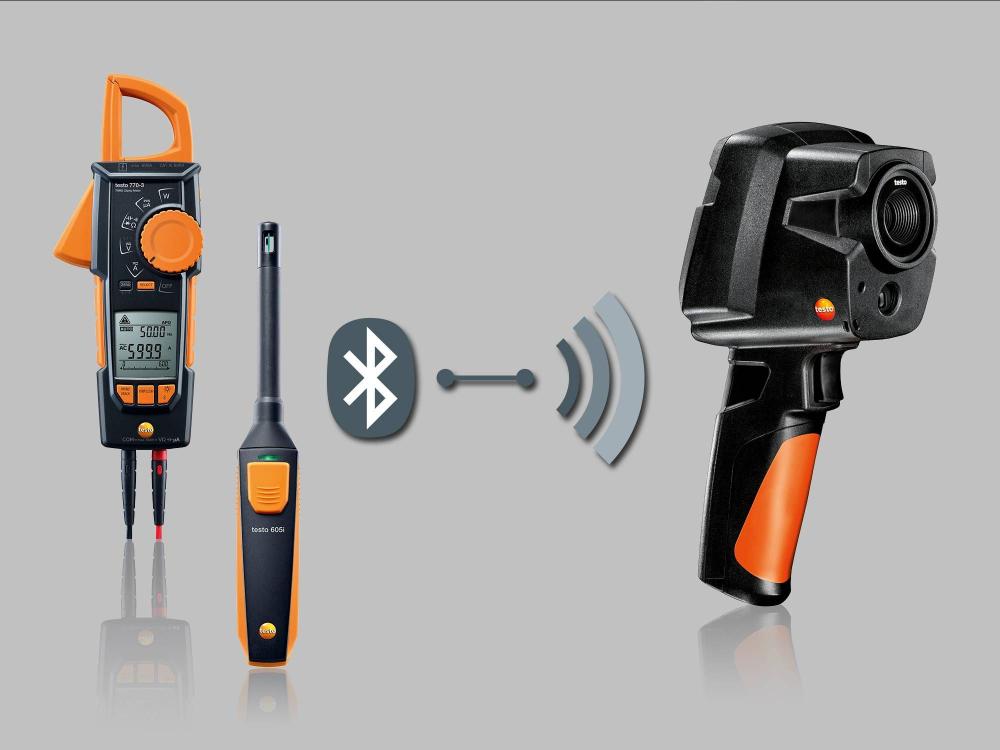

- Get Instant Current Reading from Testo Clamp meter 770-3 and Instant Humidity reading from Testo 605i Hygrometer, through wire less Integration with Thermal Imager.
- Testo ScaleAssist and testo ε-Assist
- Made in Germany and Two Years Warranty
Delivery Scope

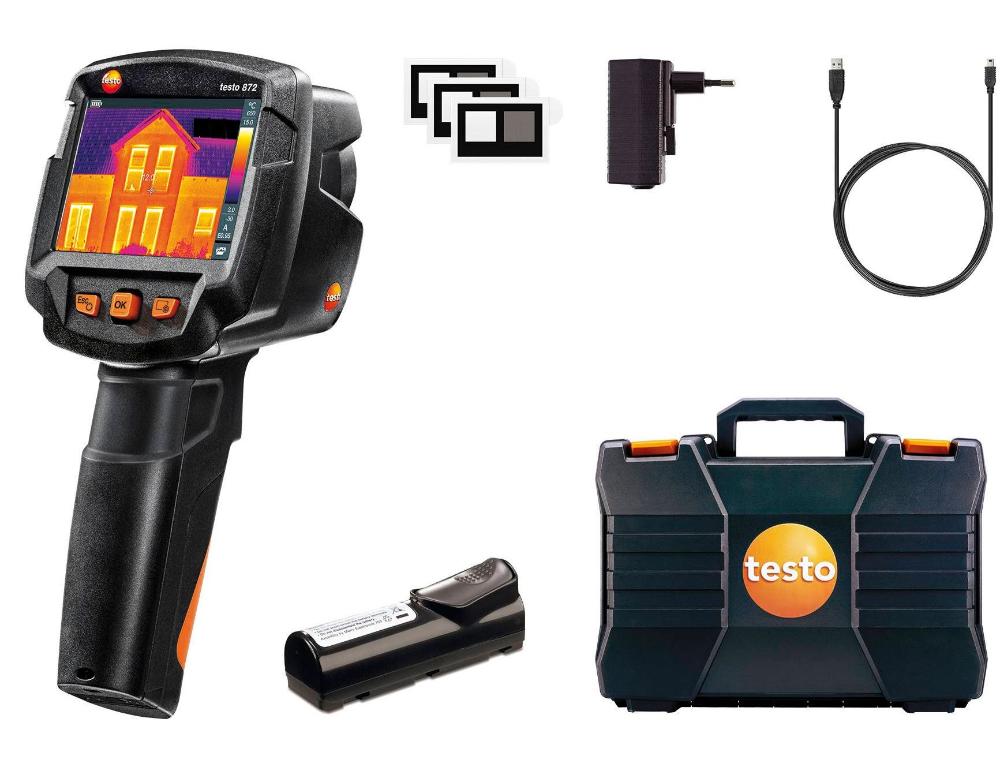

Testo 872 thermal imager with radio module for Bluetooth / WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.
Technical Details:
Infrared image output | |
Focus | Fixed focus |
Infrared resolution | 320 x 240 pixel |
Image refresh rate | 9 Hz |
SuperResolution (IFOV) | 1.3 mrad |
SuperResolution (Pixel) | 640 x 480 pixels |
Geometric resolution (IFOV) | 2.3 mrad |
Minimum focus distance | <0.5 m |
Field of view | 42° x 30° |
Thermal sensitivity | 60 mK |
Spectral range | 7.5 to 14 µm |
Measurement | |
Reflected temperature | manual |
testo ε-Assist | Included |
Measuring range | -30 to +100°C; 0 to +650°C |
Accuracy | ±2 °C, ±2 % of m.v. |
Emissivity | 0.01 to 1 |
