Smart High Pressure Measuring Instrument

Smart High Pressure Measuring Instrument - Testo 549i

Description:

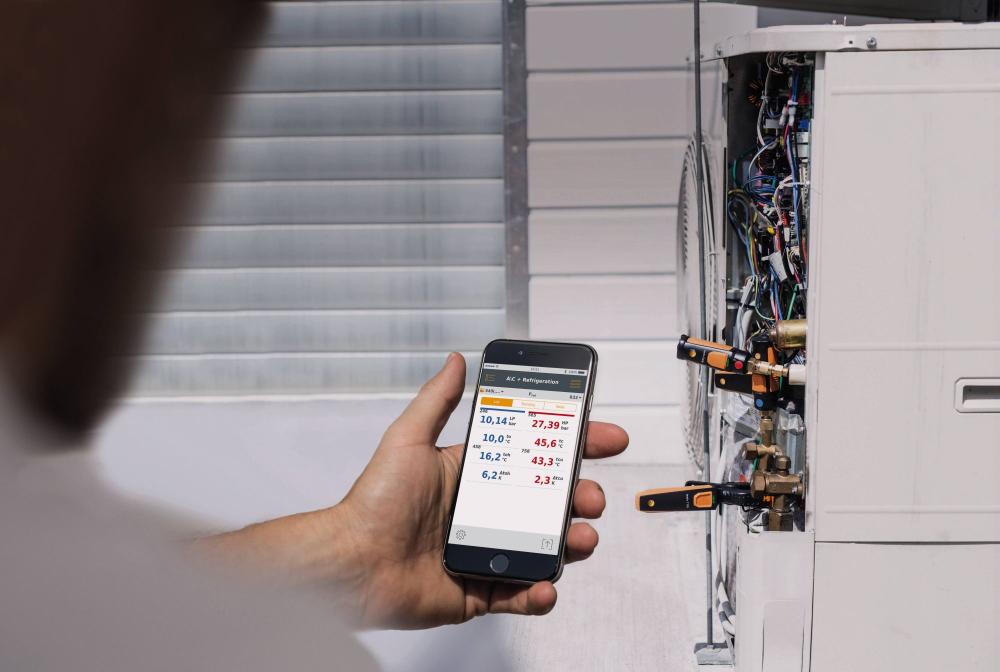

Testo offers you greater mobility when measuring: used in conjunction with your smartphone or tablet, the handy testo 549i high-pressure measuring instrument is suitable for carrying out wireless servicing and troubleshooting on air conditioning and refrigeration systems, as well as for installing them. The measuring instrument can be set up quickly and easily, directly at the pressure connection. The testo 549i makes working on widely spaced pressure connections considerably easier thanks to wireless connection to a smartphone or tablet. Also practical: no hoses are required for measurements, meaning that no or only very little refrigerant is lost. When used in conjunction with the testo 115i clamp thermometer, individual refrigeration system parameters can also be calculated.More measuring convenience thanks to the App

Readings can be viewed conveniently on your terminal device via the testo Smart Probes App. The App also enables evaporation and condensation temperatures to be calculated automatically. All measurement data is displayed either as a chart or in table form. The measurement data log can be emailed directly as a PDF or Excel file.

System requirements:

iOS 8.3 or later
Android 4.3 or later
Bluetooth 4.0

Product Benefits:

Compact professional measuring instrument from the Testo Smart Probes series, for use with smartphones/tablets
Measurement of high and low pressure
Fast and easy installation at a pressure connection
Low refrigerant loss thanks to hoseless application
Measurement data analyzed and sent via testo Smart Probes App
Space-saving and easy to transport
Made in Germany
Two Years Warranty

Delivery Scope:

Testo 549i high-pressure measuring instrument with smartphone operation, including batteries and calibration protocol.

Technical Details:

Pressure measurement
Measuring range	-1 to +60 bar
Accuracy	±0.5 % of fsv
Resolution	0.01 bar
Probe connection	7 / 16 " - UNF
Overload rel. (high pressure)	+65 bar
General technical data
Weight	156.6 g
Dimensions	125 x 32 x 31 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	150 h
Pressure media	CFC, HFC, HCFC, N, H₂O, CO₂
Storage temperature	-20 to +60 °C
