Testo 830 T1 - IR Thermometer
Technical Details
Downloads

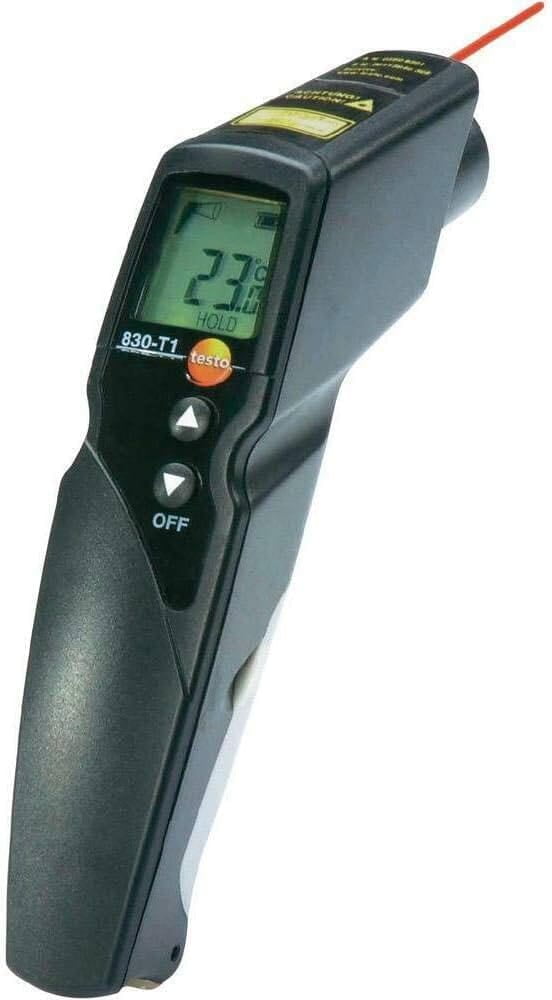

Testo 830 T1 - IR Thermometer

Testo 830-T1 Infrared Temperature Gun
Part Number: 0560 8311

Description

The testo 830-T1 infrared temperature gun with laser measurement spot marker and 10:1 optics is suitable for non-contact surface temperature measurements in trade and industry. The gun-style design is easy to handle and allows efficient, non-contact surface temperature measurements to be carried out, the integrated processor provides accurate measurement results.

Advandages

  • Infrared temperature thermometer for non-contact surface temperature measurements
  • 10:1 optics and high-resolution processor for accurate measurement results
  • Easy to use thanks to the gun-style design
  • Adjustable emission level

Delivery Scope

Testo 830-T1 infrared temperature gun, including batteries and calibration protocol.

Technical Details

Technical Data

Temperature - Infrared

 Measuring range  -30 to +400 °C
 Accuracy  ±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C) ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies)
 Measuring rate 0.5 s
 Infrared resolution  0.1 °C

General Technical Data

Weight   200 g
Dimensions
190 x 75 x 38 mm
Operating temperature   -20 to +50 °C
 Infrared resolution  0.1 °C
Product-/housing material ABS
Battery type  9V block battery
Battery life 15 h
Storage temperature -40 to +70 °C


Downloads

Download the datasheet for comprehensive product information

Data Sheet

Access product manuals for detailed guidance and instructions

Manual

Submit an inquiry for further assistance or information!

Send Enq
testo 805 i - infrared thermometer
Technical Details
Downloads

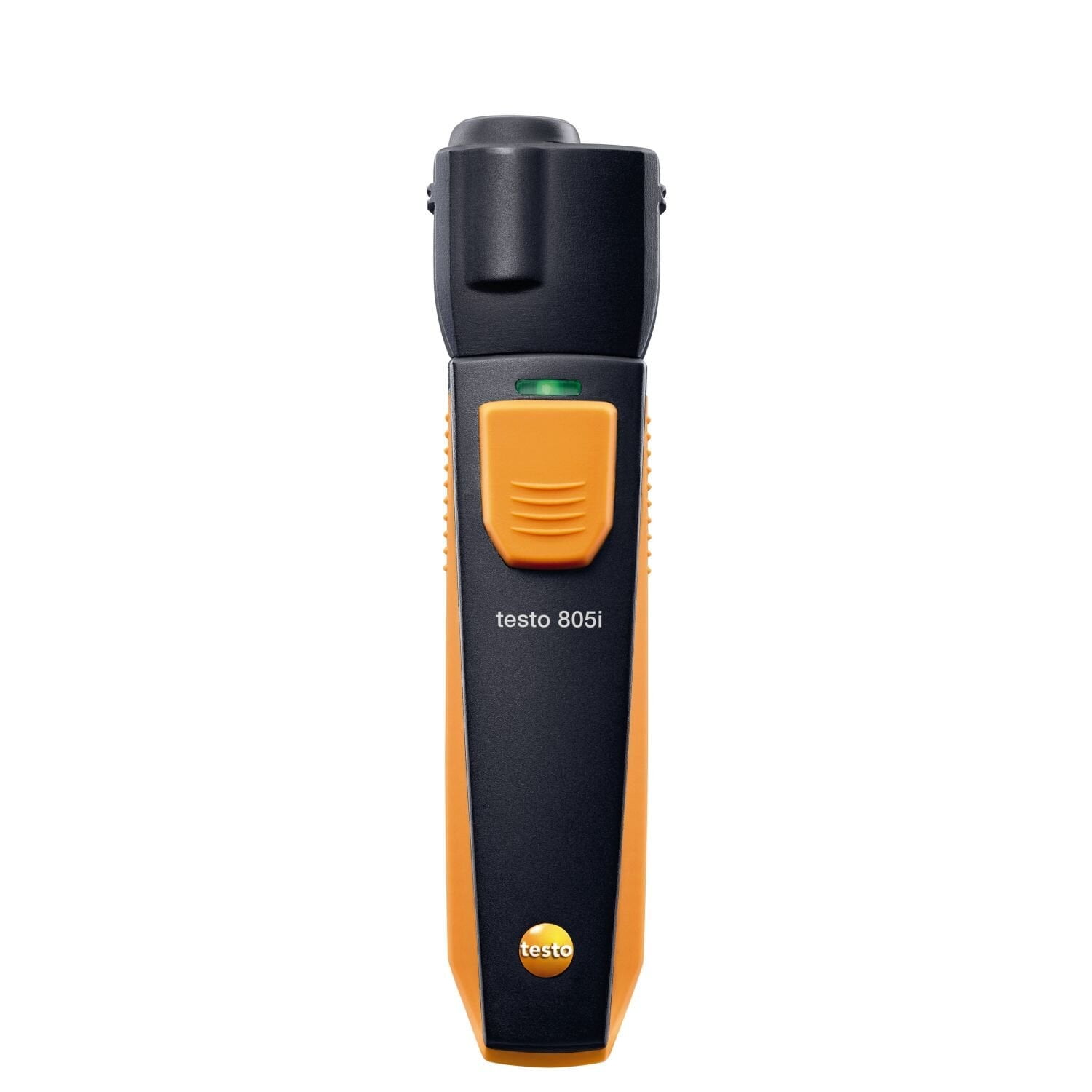

testo 805 i - infrared thermometer

testo 805 i - infrared thermometer with smartphone operation

Order no. 0560 1805

Description

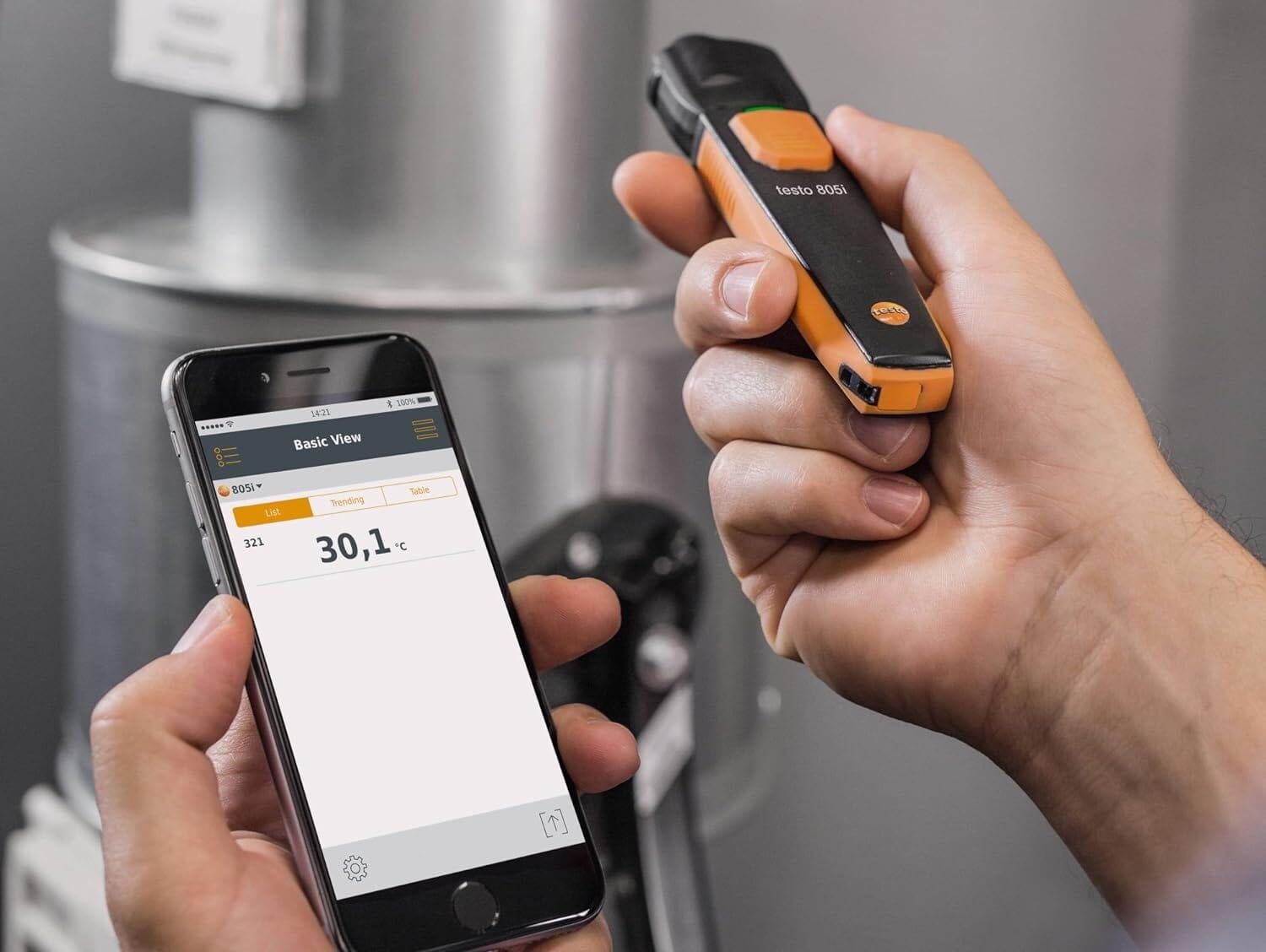

The testo 805i infrared thermometer, in conjunction with a smartphone or tablet, functions as a compact IR thermometer for wall temperatures, as well as fuse and component temperatures in air conditioning systems. The measuring point is marked clearly with a laser circle made up of eight dots – so you always know precisely where to measure.

Advandages

  • Non-contact infrared measurement of surface temperature
  • Easy selection of emission level via stored materials list

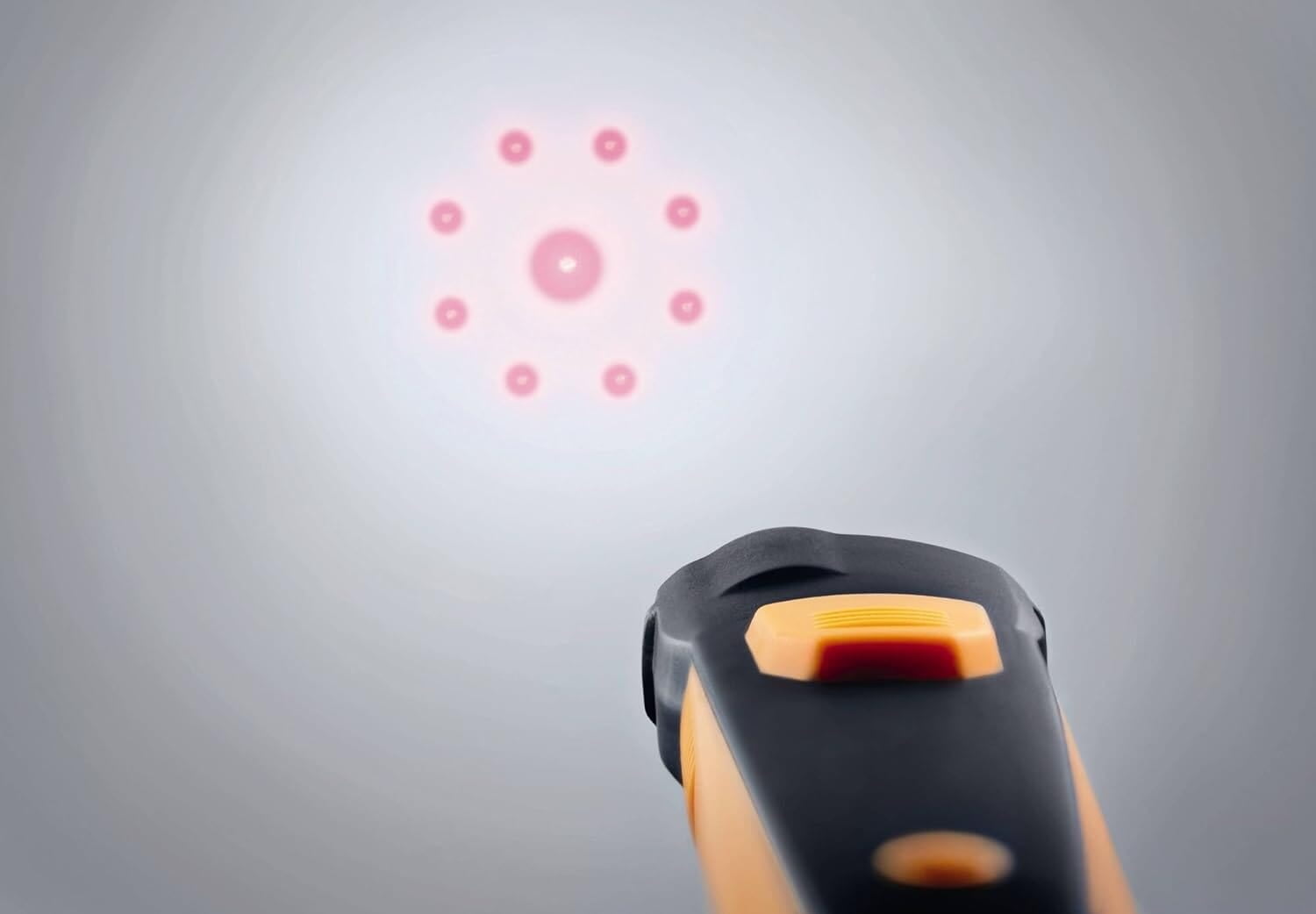

  • Highly visible marking of the measuring spot thanks to 8-point laser
  • Image documentation with readings and measuring spot marking

Delivery Scope

testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.

Technical Details

Technical Data

Temperature - Infrared

 Measuring range  -30 to +250 °C
 Accuracy ±1.5 °C or ±1.5 % of mv (0 to +250 °C)
±2 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)
 Measuring rate 0.5 s
 Infrared resolution  0.1 °C

General Technical Data

Weight     97 g
Dimensions
140 x 36 x 25 mm
Operating temperature -10 to +50 °C
 Infrared resolution  0.1 °C
Product-/housing material ABS / TPE
Battery type  3 AAA micro batteries
Battery life 30 h
Storage temperature-20 to +60 °C
System requirements
 requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour
black/orange
Downloads

Download the datasheet for comprehensive product information

Data Sheet

Access product manuals for detailed guidance and instructions

Manual

Submit an inquiry for further assistance or information!

Send Enq
Testo 831 - IR Thermometer
Technical Details
Downloads

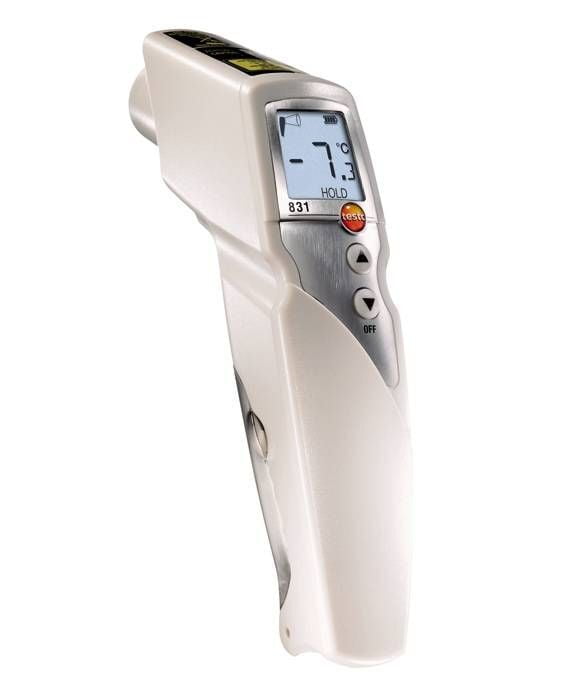

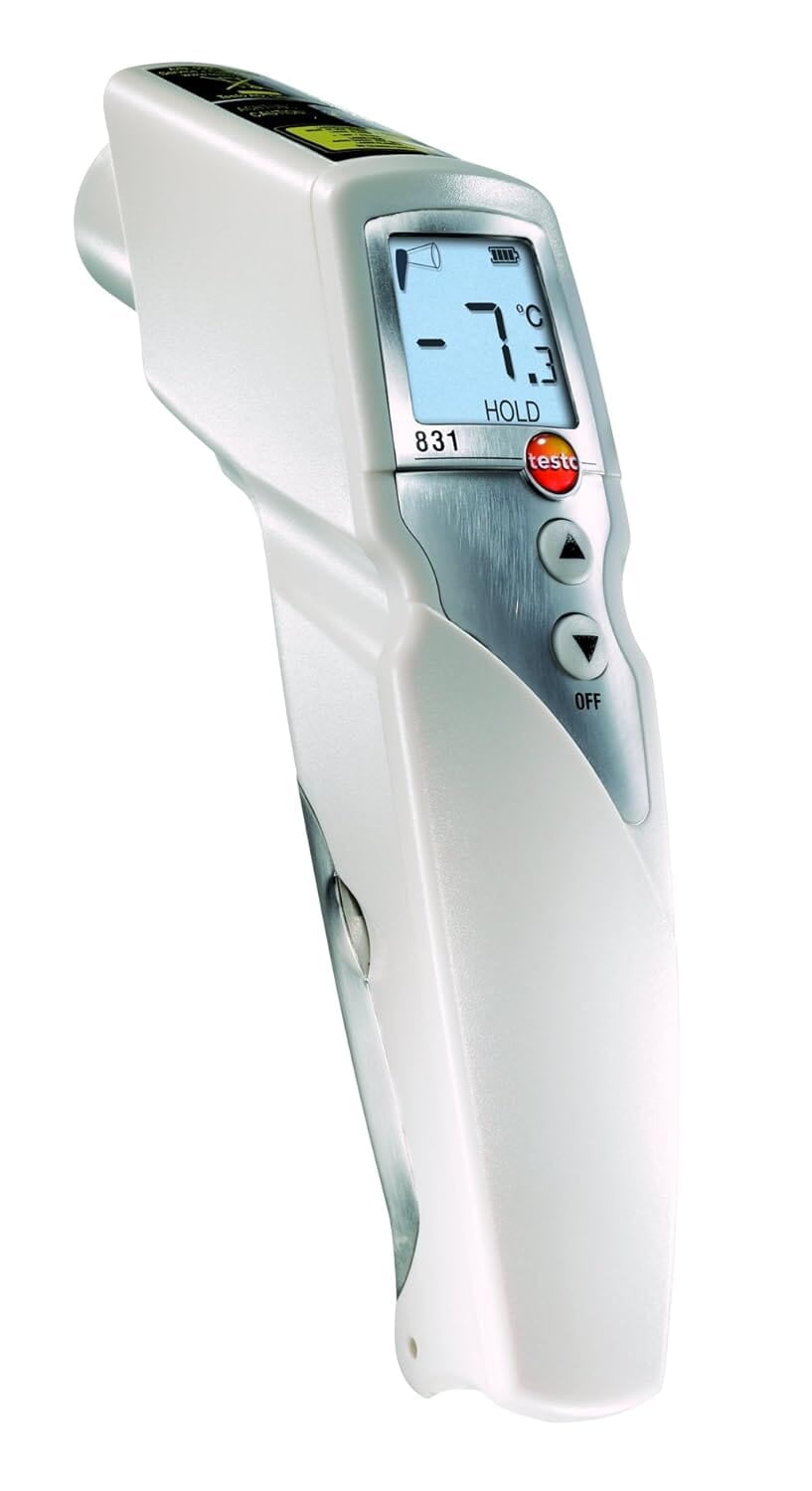

Testo 831 - IR Thermometer

Testo 831 - Food infrared thermometer
Part Number: 0560 8316

Description

Temperature checks have never been easier: the testo 831 food temperature thermometer measures the surface temperature of individual products or whole pallets of goods quickly and accurately.

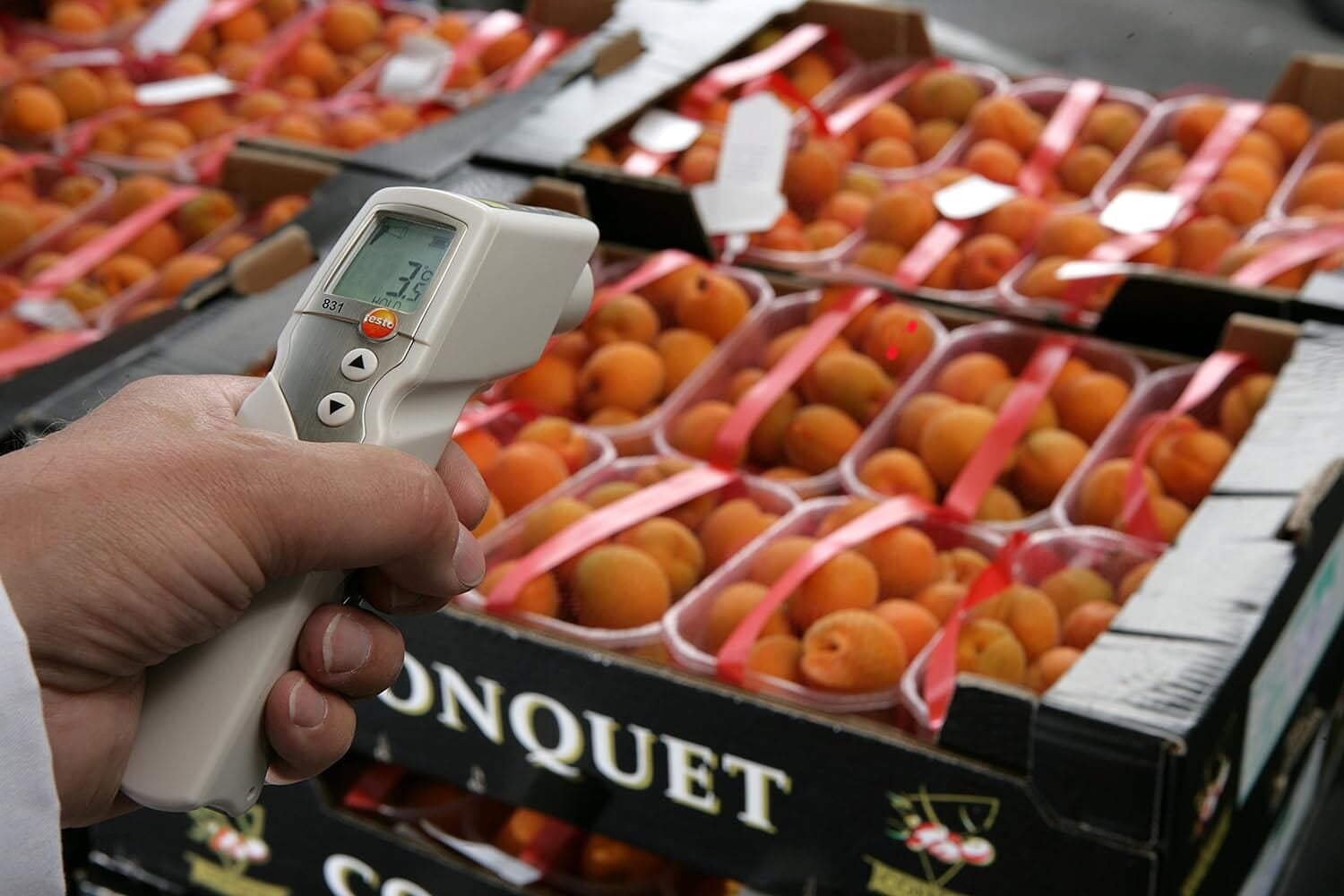

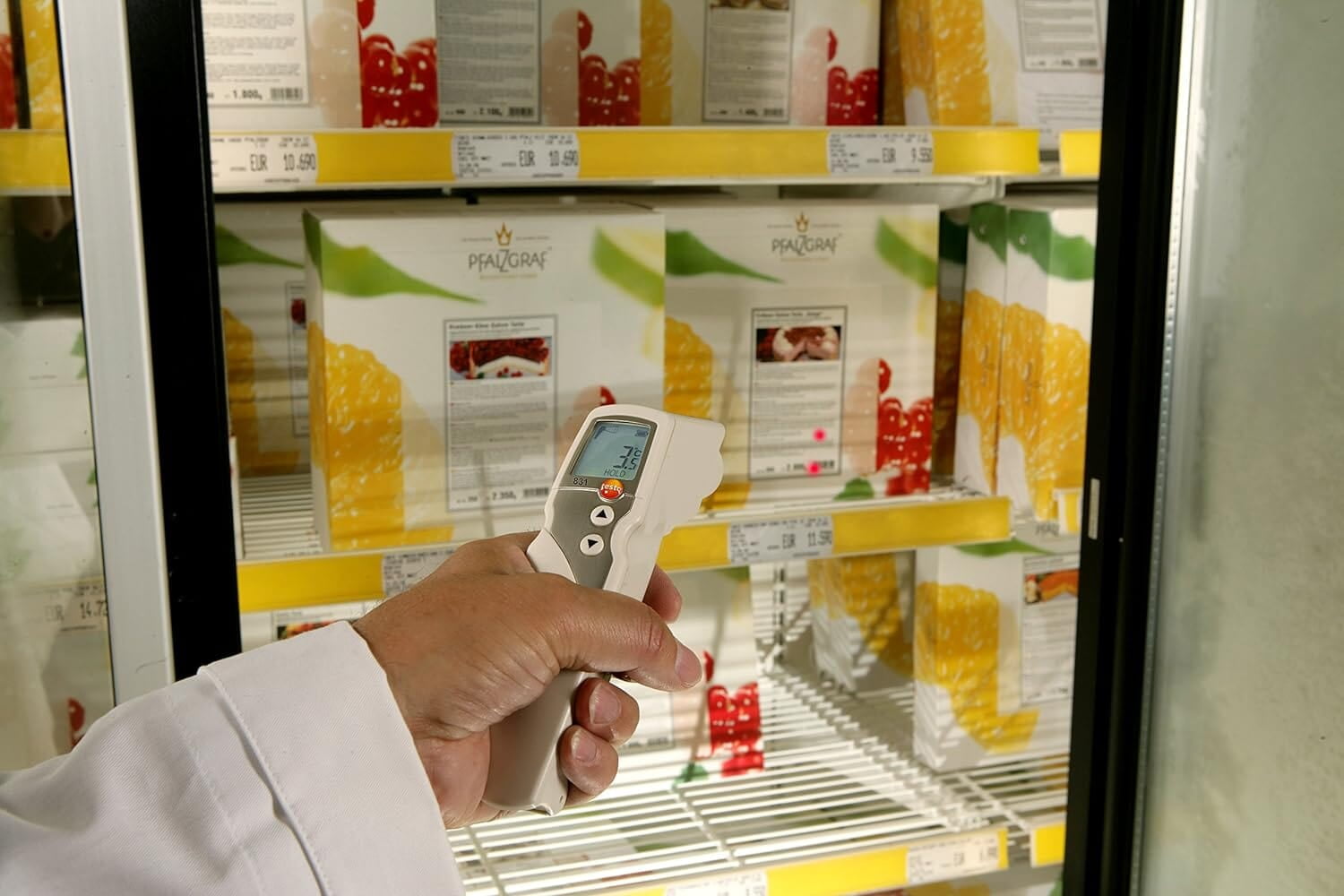

The testo 831 food infrared thermometer in action

The testo 831’s ergonomic design, state-of-the art technology and multiple features make it the ideal as a food temperature thermometer. The easy-to-use infrared food thermometer provides you with quick and accurate readings and is a real time-saver. Outstanding features and benefits include:


- Practical pistol grip design: easy one-handed use; trigger button for quick and easy scans


- Ultra-fast measurements: the infrared thermometer allows you to carry out up to two measurements per second and multi-scan whole pallets or cooling shelves

- Precise temperature measurements– also from a distance: and all made possible thanks to 30:1optics. A measurement carried out over a distance of one meter generates a measuring spot with a diameter of only 3,6 cm. This allows you to measure the temperature of smaller products, like yogurt cartons for example.

- Always on target: the two laser points generated by the 2-point laser measuring spot marker show you exactly which object you have set your sights on. The two laser points mark the diameter of the measuring circle in which the surface temperature is to be measured

- Alarm and min/max values: although your food temperature thermometer allows you to carry out measurements in the wink of an eye, an array of useful features ensures that you won’t miss a thing. Features include user-defined thresholds to determine individually when the visual and audible alarms are activated, a hold function that freezes the last measurement for easier display and min/max values.

- Belt clip: there’s no better place to store your testo 831 infrared thermometer than in its protective case. Specially since it comes with a belt clip which allows you to attach it to your belt so that you always have it with you when you need it

- Wide measuring range: -30 °C (frozen food) up to +210 °C (hot counters)

- HACCP certified: the food infrared thermometer is HACCP certified


- Also available as a kit: and just in case you need to carry out core temperature measurements too, you can also order your testo 831 infrared thermometer as a kit together with the testo 106 prod thermometer

Advandages

  • Non-contact, non-invasive temperature measurements due to IR technology
  • Precise temperature measurements also of smaller products and from a distance
  • Non-contact, non-invasive temperature measurements due to IR technology
  • Includes 2-point laser measuring spot marking, 30:1 optics, belt clip, batteries.

Delivery Scope

testo 831 infrared thermometer, case, belt clip, factory calibration certificate, batteries.

Technical Details

Technical Data

Temperature - Infrared

 Measuring range  -30 to +210 °C
 Accuracy
±2 °C or ±2 % of mv (Remaining Range)
±1.5 °C or ±1.5 % of mv (-20 to +210 °C)
 Measuring rate 0.5 s
 Infrared resolution  0.1 °C

General Technical Data

Weight   200 g
Dimensions
 190 x 75 x 38 mm
Operating temperature - 20 to +50 °C
 Protection class
 IP30
Product-/housing material ABS
Battery type 9V block battery, 6F22
Battery life15 h
Storage temperature-40 to +70 °C
Display type
 LCD (Liquid Crystal Display)
Display lighting
 Illuminated


Downloads

Download the datasheet for comprehensive product information

Data Sheet

Access product manuals for detailed guidance and instructions

Manual

Submit an inquiry for further assistance or information!

Send Enq
Testo 810 - IR Thermometer
Technical Details
Downloads

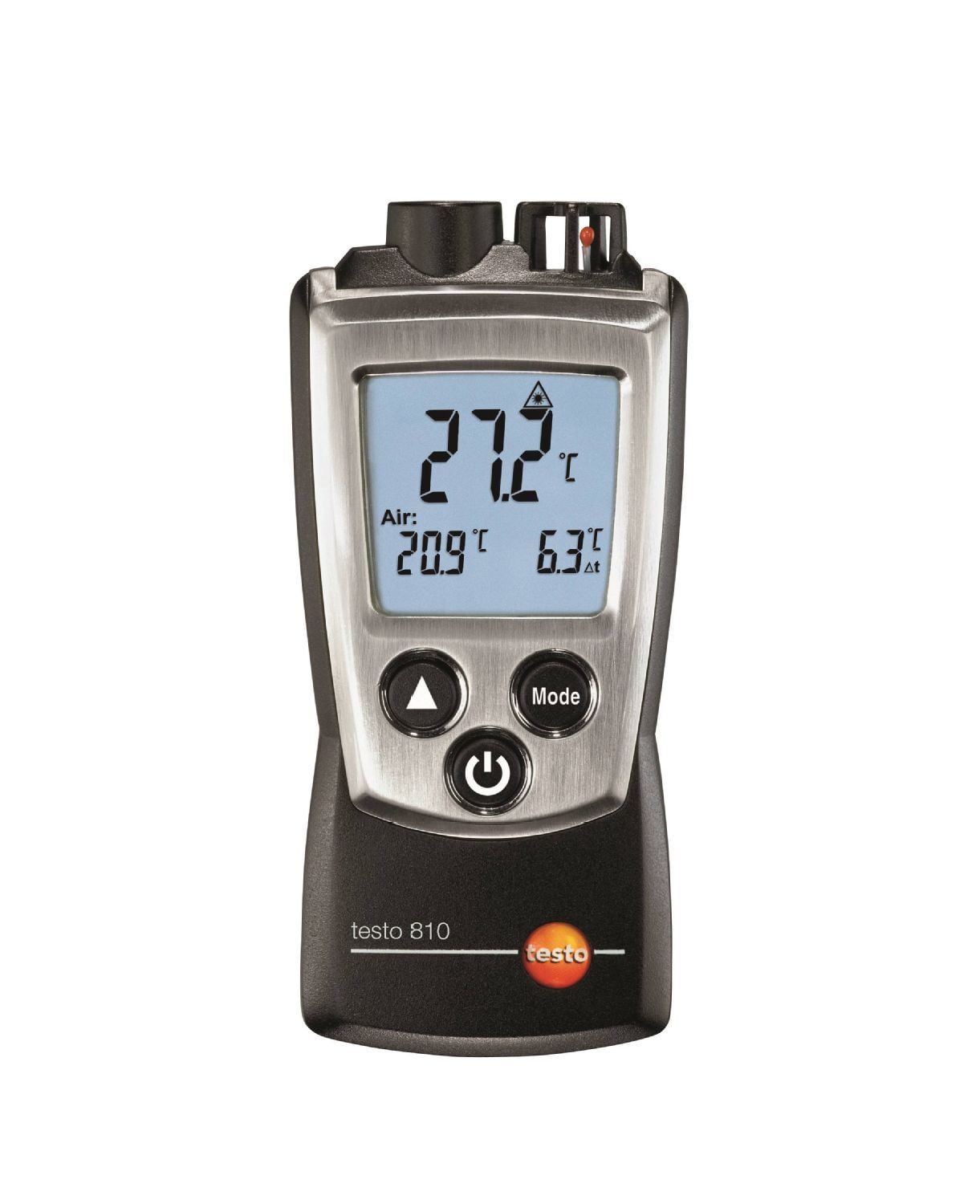

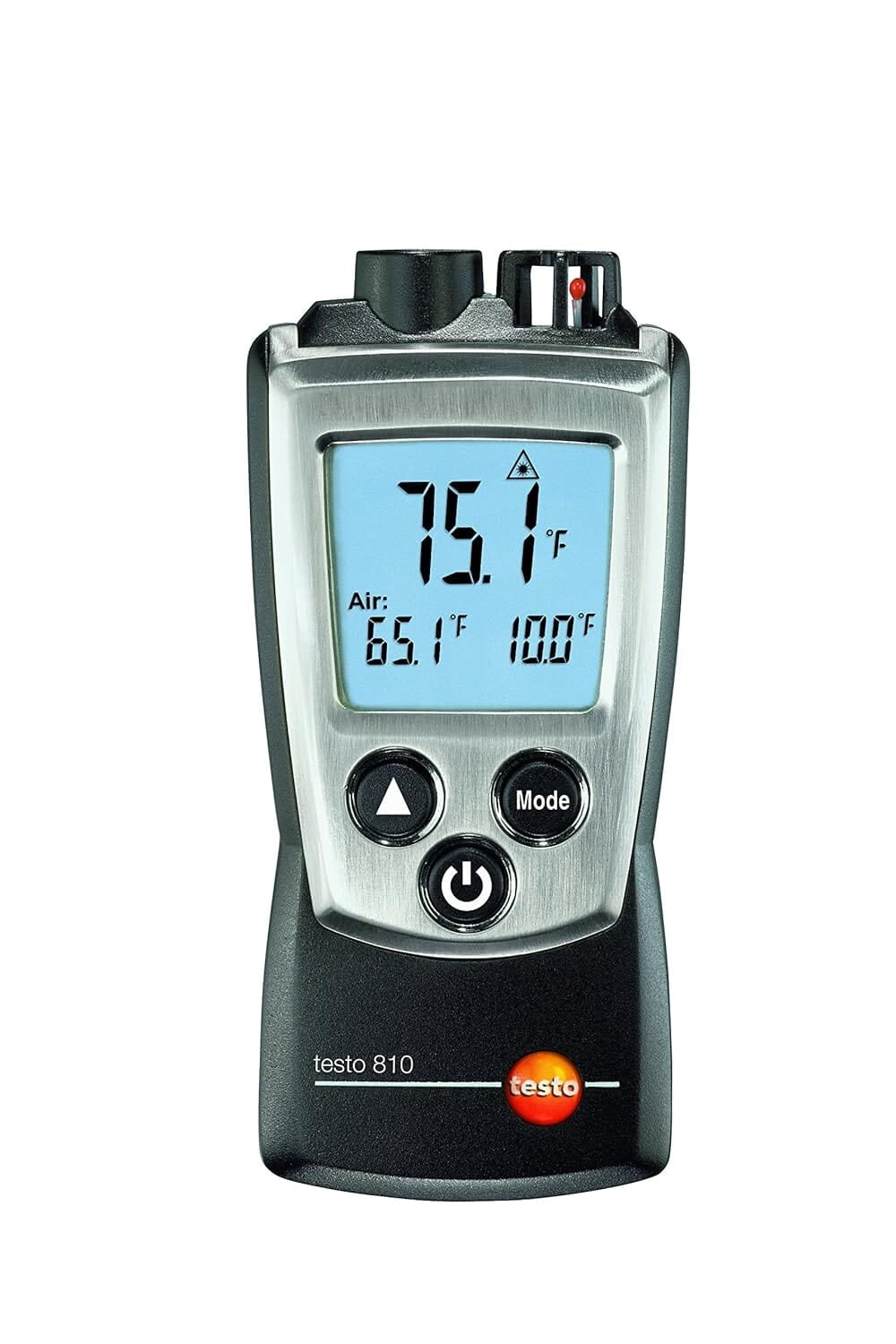

Testo 810 - IR Thermometer

testo 810 - IR thermometer

Order no. 0560 0810

Description

Testo 810 IR thermometer measures the temperature on two channels. On the one hand, being an infrared thermometer it can take non-contact surface temperature measurements of the object being measured; on the other hand, it can measure the air temperature using its additionally integrated NTC sensor. The IR thermometer displays the temperature difference directly on the illuminated display.
Functions and applications of the testo 810 IR thermometer

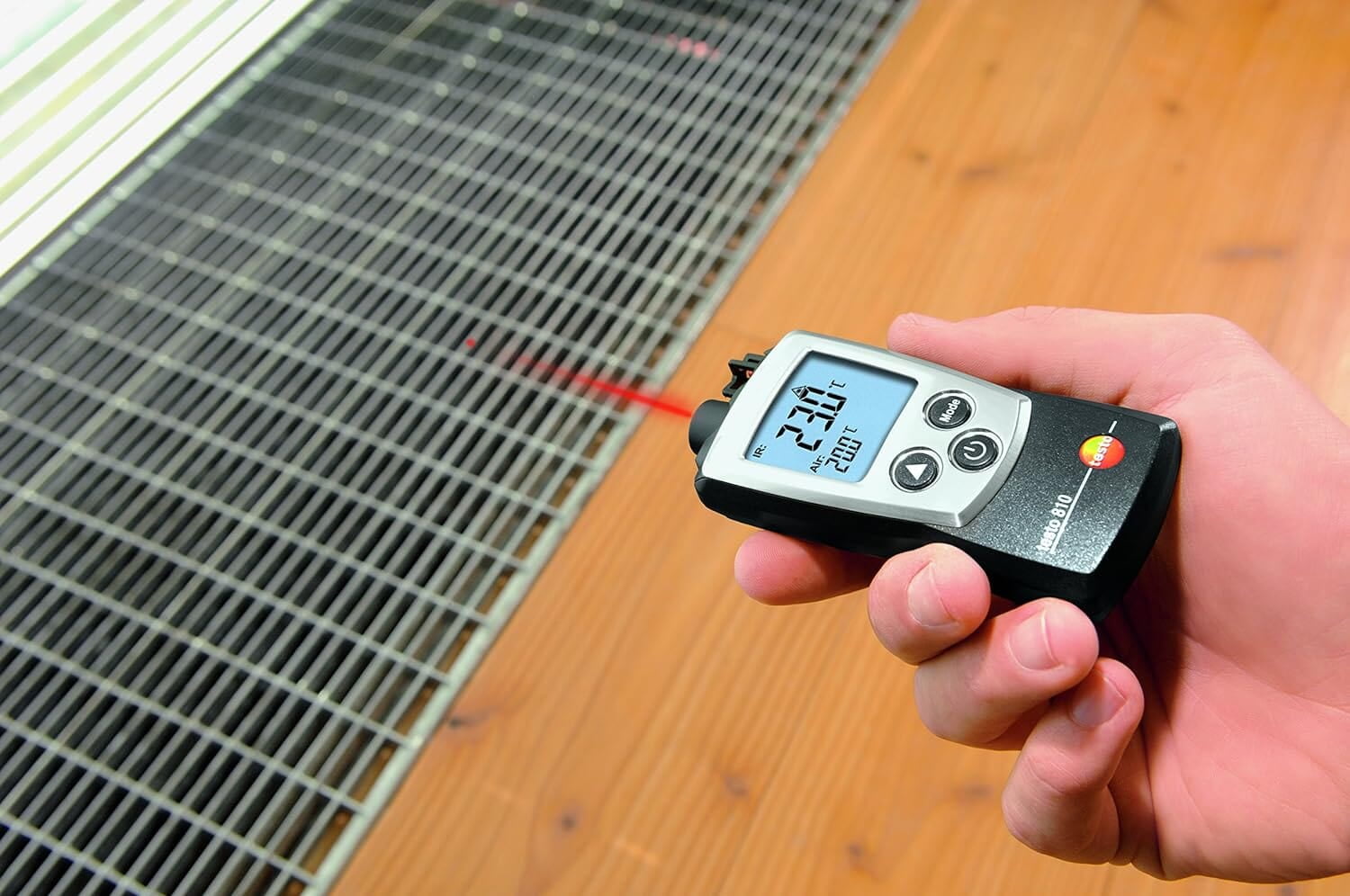

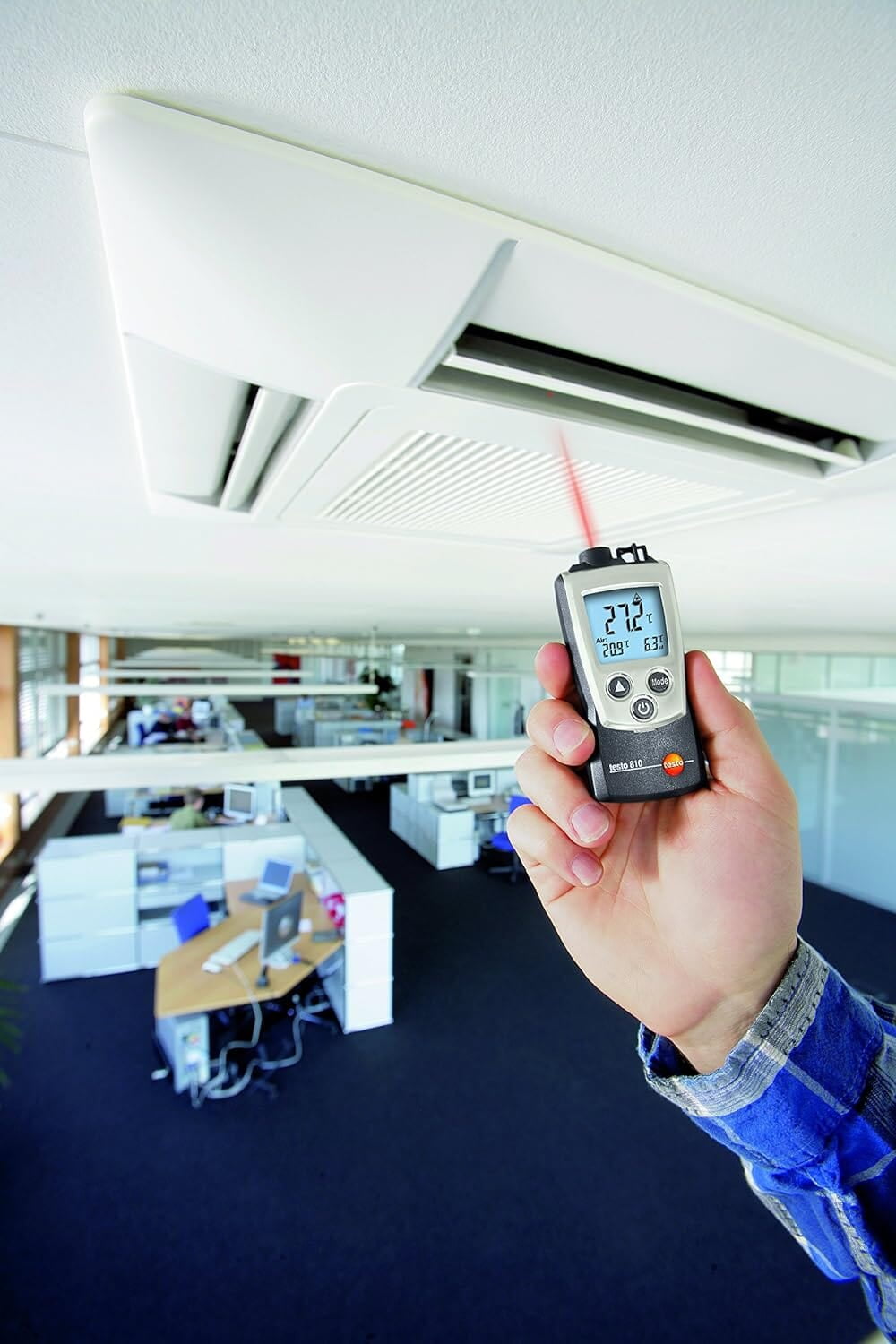

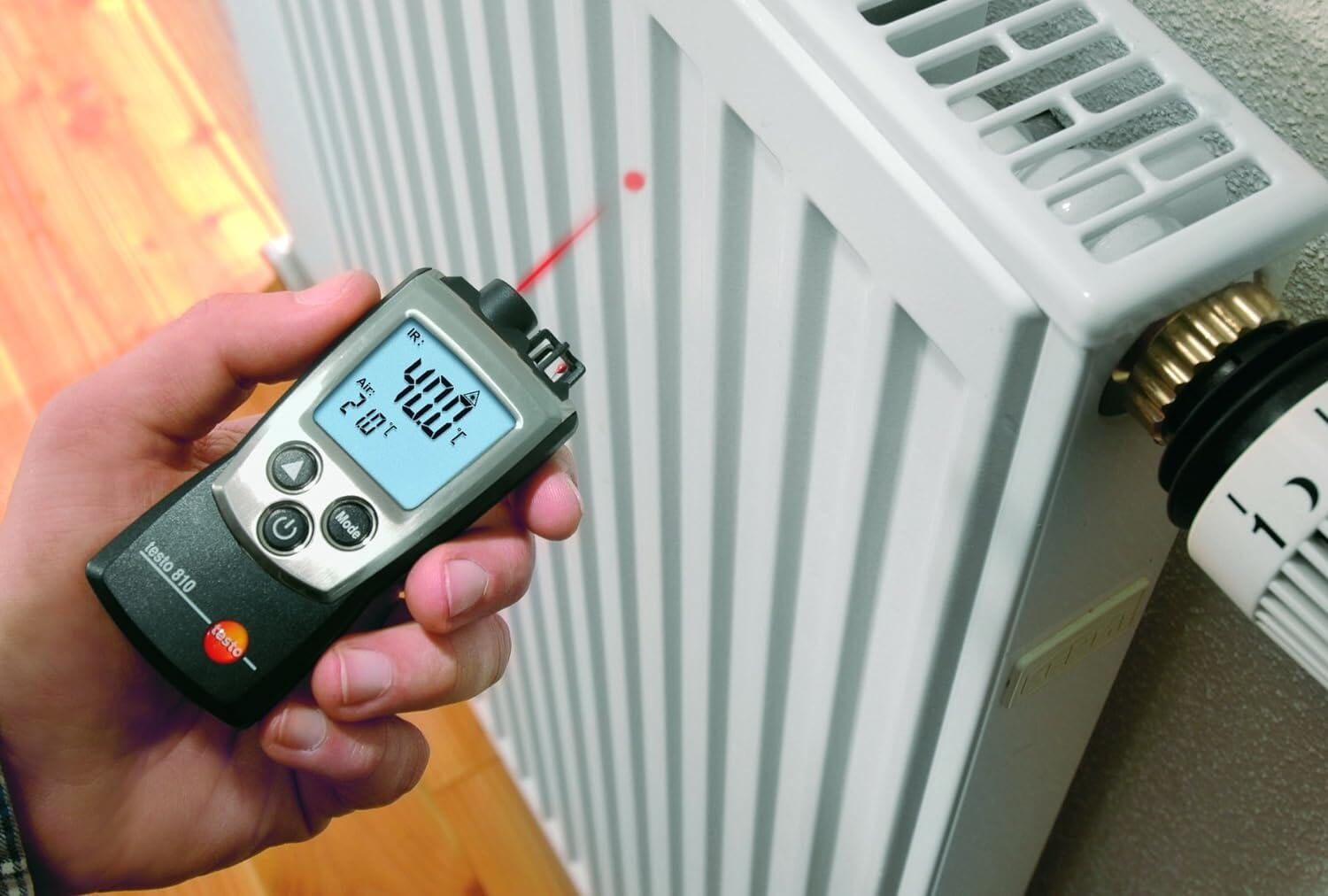

The testo 810 IR thermometer is extremely well suited to use in heating, ventilation and air conditioning technology. At the touch of a button, you can measure the surface temperature of radiators, air vents, or windows and compare these to the air temperature.
The compact size of the infrared thermometer makes it easy to store in your pocket and immediately accessible for taking measurements. When measuring surface temperatures, you can mark the required spot with the integrated 1 point laser to achieve a specific measurement. The 6:1 optics of the infrared temperature measuring instrument is primarily suitable for measurements at closer to medium distances.
The IR thermometer emission level can also be individually set. This allows you to adjust it to the respective material properties of the surface being measured, as well as achieve the best measurement results. The integrated air temperature sensor is also highly reliable: this is an NTC temperature sensor which measures the air temperature with utmost accuracy.
Other practical features of the IR thermometer are the min./max. display and the hold function (to record measuring values). A protective cap and belt pouch (included in scope of delivery) add to the safety of the infrared thermometer.

Advandages

  • Simultaneous measurement of the surface temperature and air temperature
  • Non-contact measurement of the surface temperature (infrared thermometer)
  • Display of the temperature difference
  • Adjustable emission level

Delivery Scope

Testo 810 IR thermometer with integrated NTC temperature sensor, including protective cap, calibration protocol, belt pouch, and batteries.

Technical Details

Technical Data

Temperature - NTC

 Measuring range  -10 to +50 °C
 Accuracy ±0.5 °C
 Measuring rate 0.5 s
 Infrared resolution  0.1 °C

Temperature - Infrared

 Measuring range  -30 to +300 °C
 Accuracy
±2.0 °C (-30 to +100 °C)
±2 % of mv Remaining Range
 Measuring rate 0.5 s
 Infrared resolution  0.1 °C

General Technical Data

Weight   90 g  (incl. battery and protective cap)
Dimensions
119 x 46 x 25 mm (incl. protective cap)
Operating temperature   -10 to +50 °C
Protection ClassIP40
Product-/housing material ABS
Battery type 2 AAA micro batteries
Battery life50 h (average, without display illumination)


Downloads

Download the datasheet for comprehensive product information

Data Sheet

Access product manuals for detailed guidance and instructions

Manual
