Entry Level Digital Manifold - Testo 549

Description:


When carrying out maintenance or installation work on refrigeration systems and heat pumps, are you increasingly noticing that the use of analog manifolds is laborious and time-consuming? If so, the testo 549, our entry-level digital manifold, is the perfect choice for you. This 2-way manifold can be used for 60 refrigerants and offers practical solutions for your everyday work:Two temperature-compensated pressure sensors ensure fast, precise measurement of high and low pressure, and automatic calculation of the evaporating and condensing temperature

Two connections for external temperature probes : with temperature probes attached (optional), the digital manifold can calculate superheating and subcooling simultaneously and in real time. This means you can do away with manual comparisons, which are prone to error, and obtain fast, accurate results

Leakage test of refrigeration systems:  the manifold can carry out a temperature-compensated leakage test of the system for rough tightness testing. For this, the initial system pressure is compared with the system pressure at the end of the measurement, so that the difference (if there is one) can be displayed immediately.

Can be used for standard refrigerants:  the 60 most common refrigerants are stored in the instrument as standard. You can also view the temperature difference via the 2-way manifold. The automatic heat pump mode, which makes switching over the refrigerant hoses unnecessary, is also really practical.

Digital manifold: study and practical

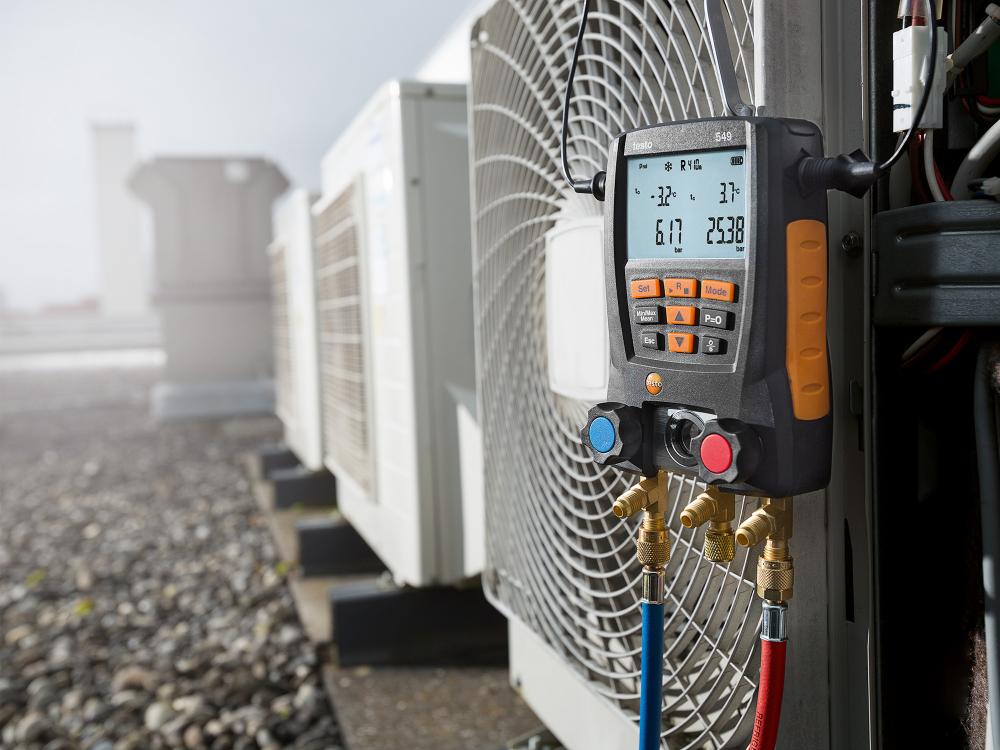

The testo 549 digital manifold features a robust 2-way valve block made of metal with 3 connections and 3 hose holders, is easy to handle and can even withstand harsh environmental conditions. With its solid housing, the instrument is reliably protected against impacts in compliance with protection class IP 42. You can use the suspension hook to secure the manifold during the measuring process. Thanks to the illuminated display, you can read off the readings easily, even in dark environments.


Product Benefits:


  • Calculation of superheating / subcooling in real time with up to two external temperature probes
  • 2-way valve block with three connections, three hose parkers and sight glass
  • 60 common refrigerants stored in the instrument
  • Display illumination for better legibility in dark surroundings
  • 250 hours‘ battery life
  • Made in Germany
  • Two Years Warranty

Delivery Scope:



Testo 549 digital manifold including calibration protocol and batteries.



Technical Details:


Temperature

Measuring range

-50 to +150 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Probe connection

2 x plug-in (NTC)



Pressure measurement

Measuring range

-1 to +60 bar

Accuracy

±0.5 % fs

Resolution

0.01 bar

Probe connection

3 x 7/16" – UNF

Overload rel. (high pressure)

65 bar



Vacuum measurement

Measuring range

-1 to 0 bar

General technical data

Weight

1060 g

Dimensions

200 x 109 x 63 mm

Operating temperature

-20 to +50 °C

Protection class

IP42

Storage temperature

-20 to +60 °C
