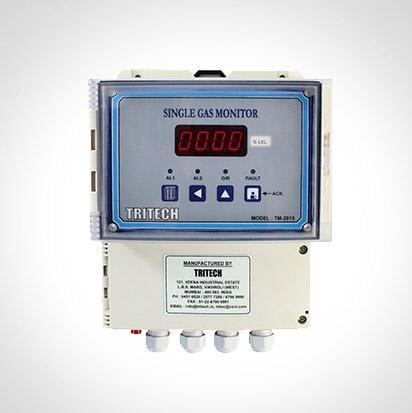

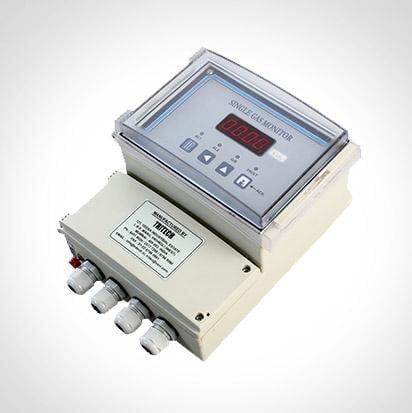

TM-2015 Gas Monitor
Model : TM-2015 is most advance micro controller based Gas Monitor with Modbus RS-485 output for data logging and control action. TM-2015 is also available in Flameproof or Safe area mountable enclosure. Magnetic Key operation provides ease of Configuration & Calibration in Flameproof type enclosure.
All Tritech make 2/3 wire Gas transmitters can be connected with TM-2015 Gas Monitor. Trilog data logging software can be installed in the PC to acquire data. Further processing and report generation can be done as per requirement. Flameproof models are available for Gas Group IIA-IIB or for IIC. All the Explosion proof versions are PESO/CMRI/ERTL(E) approved.
Application
- LPG / CNG Storage and Distribution
- Automotive Manufacturing
- Chemical Plants
- Petrochemical & Refineries
- Pharmaceuticals and Drug Manufacturers
- Power & Fertiliser Plants
- Waste Water Treatment & Effluent Treatment
| Combustible | Toxic | Oxygen | |
|---|---|---|---|
| Gas Range | 0 - 100% LEL Combustible Gas in air | CI2 : 0 - 5 upto 50 PPM S02 : 0 - 10 PPM HCN : 0 - 25 PPM H2S : 0 - 100 PPM CO : 0 - 1000 PPM VOC : 0 - 1000 PPM NH3 : 0 - 1000 PPM (Other Gases on Request) | 0 - 5, 10, 15, 20, 25, 30% V/V O2 OR 0 - 1000, 1999 PPM O2 |
| Detector Type | 3 Wire Transmitter | 2 Wire Transmitter | 2 Wire Transmitter |
| Sensor Type | Catalytic Combustion OR Infrared | Electro Chemical, Semi Conductor or PID | Electro Chemical OR Galvanic |
| Alarms | Three Adjustable Alarm Levels, i.e. Alarm 1, Alarm 2 and Over range | ||
| Display | 3 1/2 digit bright continuous LED digital read out | ||
| Indicators | Alarm 1, Alarm 2 and Over range individual Red LED, Fault Amber LED | ||
| Contacts | SPDT Potential free contact for Alarm 1, Alarm 2, Over range & for Fault Contacts Rated 230 VAC, 5 Amp | ||
| Output | Analog : 4 - 20 mA Linear (non isolated) Digital : Modbus RTU output standard, fully configurable 2 wire RS-485 | ||
| Controls | Magnet used for calibration functions, calibration without opening the housing Internal push-button controls also available for calibration and setup | ||
| Power Supply | 230 V AC or 110 V AC, 50 Hz, Others on request | ||
| Dimensions | 250 mm (H) X 185 mm (W) X 125 mm (D) (Weather proof) 240 mm (H) X 190 mm (W) X 120 mm (D) (Flame proof) | ||
| Mounting | Wall / Surface Mounted | ||
| Protection | Dust and Weatherproof to IP-65 standard (Optionally Flameproof) | ||
| Operating Temp. | 0 - 60 Degrees Centigrade | ||
| Humidity | 0 - 95% RH, Non-Condensing | ||
| Optional Accessories | Trilog software | ||
