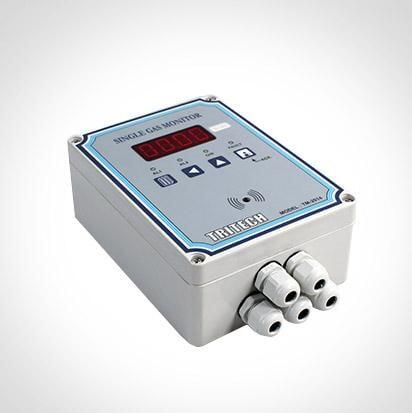

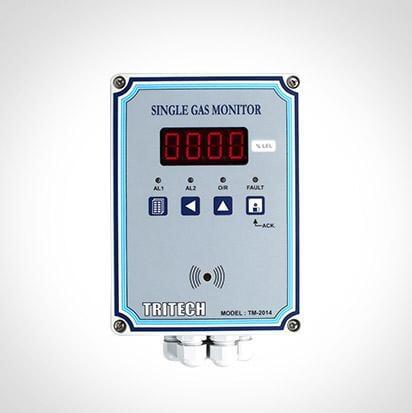

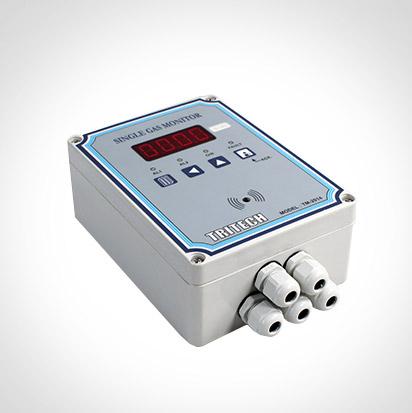

single Channel Gas Monitor Model : TM-2014
A single Channel Gas Monitor Model : TM-2014 is most versatile Micro Controller based Gas Monitor with Option of Flameproof or Safe area mountable enclosure. Magnetic Key operation provides ease of Configuration & Calibration in Flameproof type enclosure.
Easy and simple to maintain Gas Monitor can accept input from any Tritech make 2/3 wire Gas transmitters. Using Alarm relay contacts remote annunciation and control action can be achieved as per requirement. Flameproof models are available for Gas Group IIA-IIB or for IIC. All the Explosion proof versions are PESO/CMRI/ERTL(E) approved
Application
- LPG / CNG Storage and Distribution
- Automotive Manufacturing
- Chemical Plants
- Petrochemical & Refineries
- Pharmaceuticals and Drug Manufacturers
- Power & Fertiliser Plants
- Waste Water Treatment & Effluent Treatment
| Combustible | Toxic | Oxygen | |
|---|---|---|---|
| Range | 0 - 100% LEL Combustible gas in air | CI2 : 0 - 5 upto 50 PPM S02 : 0 - 10 PPM HCN : 0 - 25 PPM H2S : 0 - 100 PPM CO : 0 - 1000 PPM VOC : 0 - 1000 PPM NH3 : 0 - 1000 PPM (Other Gases on Request) | 0 - 5, 10, 15, 20, 25, 30% VN O2 OR O - 1000, 1999 PPM O2 |
| Detector Type | 3 Wire Transmitter | 2 / 3 Wire Transmitter | Direct connect OR 2 Wire Transmitter |
| Sensor Principle | Catalytic Bead OR Infrared | Electrochemical OR Semiconductor | Electrochemical |
| Alarms | Two Adjustable Alarm Levels, i.e. Alarm 1 and Alarm 2 | ||
| Display | 7 Segment Bright, LED 4 Digit Read out | ||
| Operation | Front Magnetic key for Flame proof version Front Membrane key for Weather proof version | ||
| Indicators | Alarm 1, Alarm 2 & Over Range individual Red LED, Fault Amber LED | ||
| Contacts | SPDT Potential free Contacts for AL 1, AL2 & Fault Contacts Rated 230 V AC, 5 Amp | ||
| Hooter | In-built for Weather proof model. Activates for Alarms & Fault | ||
| Power Supply | 230 V AC or 110 V AC, 50 Hz, Others on request | ||
| Dimensions | 170 mm (H) X 125 mm (W) X 65 mm (D) (Weather proof) 240 mm (H) X 190 mm (W) X 120 mm (D) (Flame proof) | ||
| Mounting | Wall / Surface Mounted | ||
| Protection | Dust and Weatherproof to IP 65 standard (Optionally Flameproof) | ||
| Operating Temp. | 0 - 60 Degrees Centigrade | ||
| Humidity | 0 - 95% RH, Non-Condensing | ||
