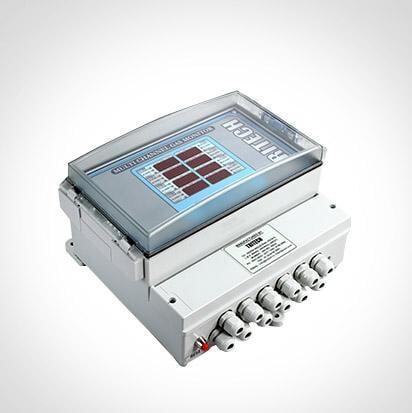

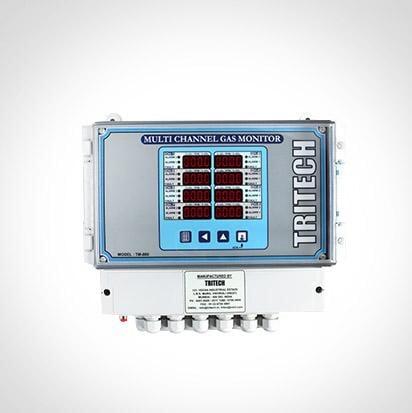

GAZCHAMP-EX Multi Channel Gas Detection system
Gazchamp–Ex is the till date most preferred Multi Gas Detector with Individual Display type Gas Monitor. Gazchamp-Ex has established itself in the market with most useful features and ease of maintenance clubbed together. Each channel has separate input card maintaining single loop integrity most desired in reliable Gas Detection system. Gazchamp-Ex can be connected with various Tritech make direct Detectors or to any / mix of various Gas transmitters .
Individual relay contacts, 4-20 mA output and expandable nature are the key other features of Gazchamp-Ex. It’s available in 8 / 16 channel configuration. Special versions are available with Battery backups in case of power failures.
Gazchamp-Ex is most ideally suitable for plants which require Multi Channel Gas Detection system for various Gases or for single Gas application but with compact Monitor.
- LPG / CNG Storage and Distribution
- Automotive Manufacturing
- Chemical Plants
- Petrochemical & Refineries
- Pharmaceuticals and Drug Manufacturers
- Power & Fertiliser Plants
- Waste Water Treatment & Effluent Treatment
| Combustible | Toxic | Oxygen | |
|---|---|---|---|
| Range | 0- 100% LEL Combustible gas | CI2 : 0 - 5 upto 50 PPM S02 : 0 - 10 PPM HCN : 0 - 25 PPM H2S : 0 - 100 PPM CO : 0 - 999 PPM VOC : 0 - 999 PPM NH3 : 0 - 999 PPM (Other Gases on Request) | 0 - 5, 10, 15, 20, 25, 30% V/V O2 |
| Detector Type | Direct Connect OR 3 Wire Transmitter | 2 Wire Transmitter | 2 Wire Transmitter |
| Sensor Principle | Catalytic Bead OR Infrared | Electrochemical OR Semiconductor | Electrochemical |
| Display / Resolution | 2 or 3 digits LED Display / 1 or 0.1 | ||
| Indicators | 2 nos. Red LED for Alarm 1 & Alarm 2 1 no. Red LED for Over Range Amber LED for Fault Green LED for Pilot | ||
| Alarms | Two Adjustable Alarm Levels (User Adjustable) | ||
| Contacts | Common : SPDT Potential free Contacts for Alarm 1, Alarm 2 & Fault Individual : SPDT Potential free Contacts for Alarm 1 of each Channel SPDT Potential free Contacts for Alarm 2 of each Channel Contacts Rated 230V AC, 5 Amp / 12 VDC, 10 Amp | ||
| Retransmission | Non-isolated 4 - 20 mA O/P (instead of Individual Relay Contacts) | ||
| Power Supply | 230 V AC or 110 V AC, 50 Hz, Others on request | ||
| Dimensions | 2 ~ 8 Channels : 385 mm(W) x 320 mm(H) x 125 mm(D) 9 ~ 15 Channels : 500 mm(W) x 360 mm(H) x 158 mm(D) | ||
| Mounting | ABS Plastic, Wall / Surface Mounted | ||
| Protection | Dust and Weather protected | ||
| Operating Temp. | 0 - 60 Degrees Centigrade | ||
| Humidity | 0 - 95% RH, Non-Condensing | ||
