Testo 890 - Thermal Imager
Product Description
- Inspecting high-voltage lines
- Pinpointing hotspots in solar parks (which can indicate defective cells, for example)
- Detecting irregularities in large industrial plants (such as refineries)
All the important information about the testo 890 thermal imager with super-telephoto lens

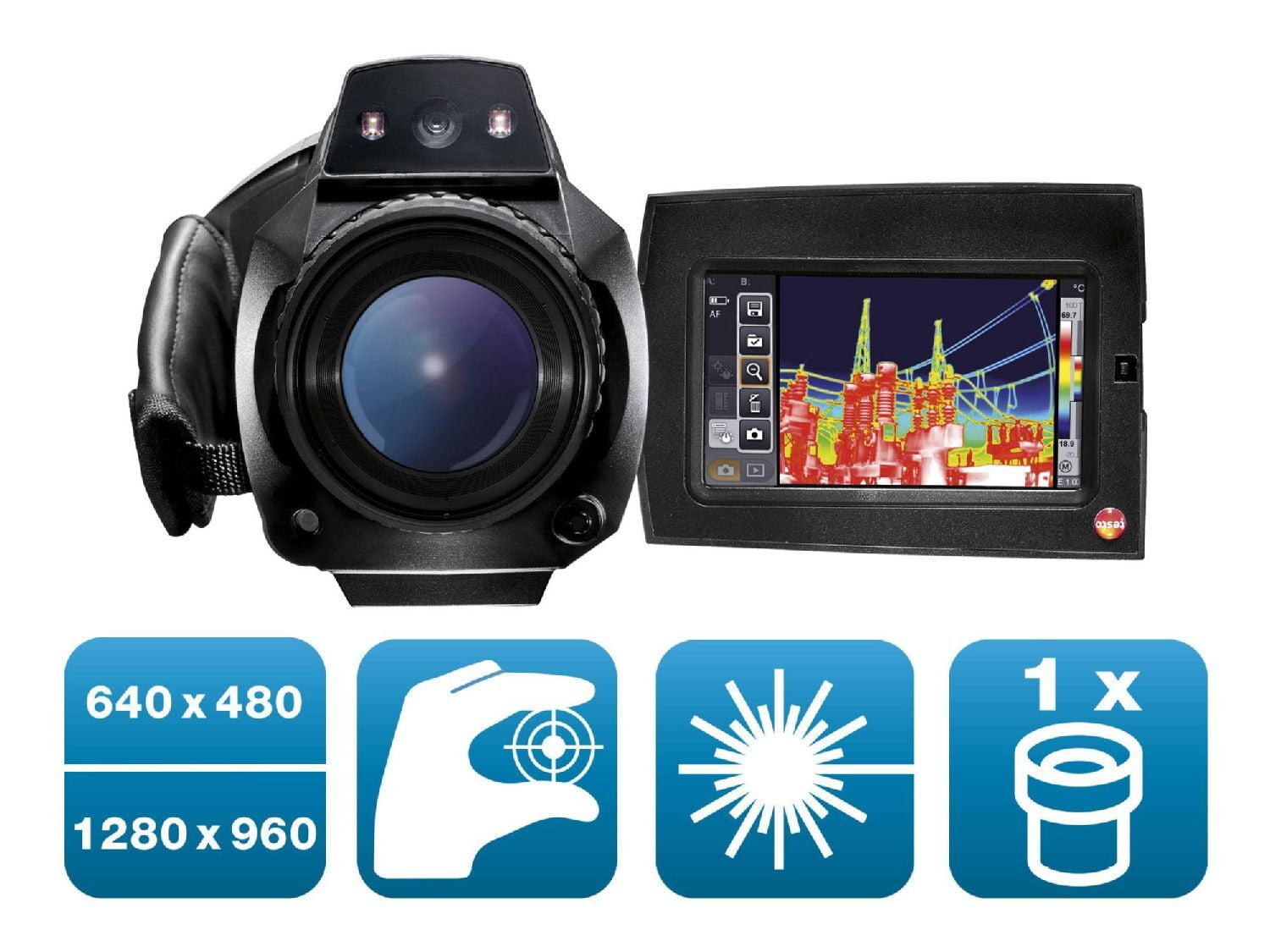

testo 890 thermal imager:- Up to 307,200 temperature measuring points: a detector size of 640 x 480 pixels guarantees accurate detection. SuperResolution technology even boosts image quality to 1280 x 960 pixels
- You can also choose to save thermal images as JPEGs

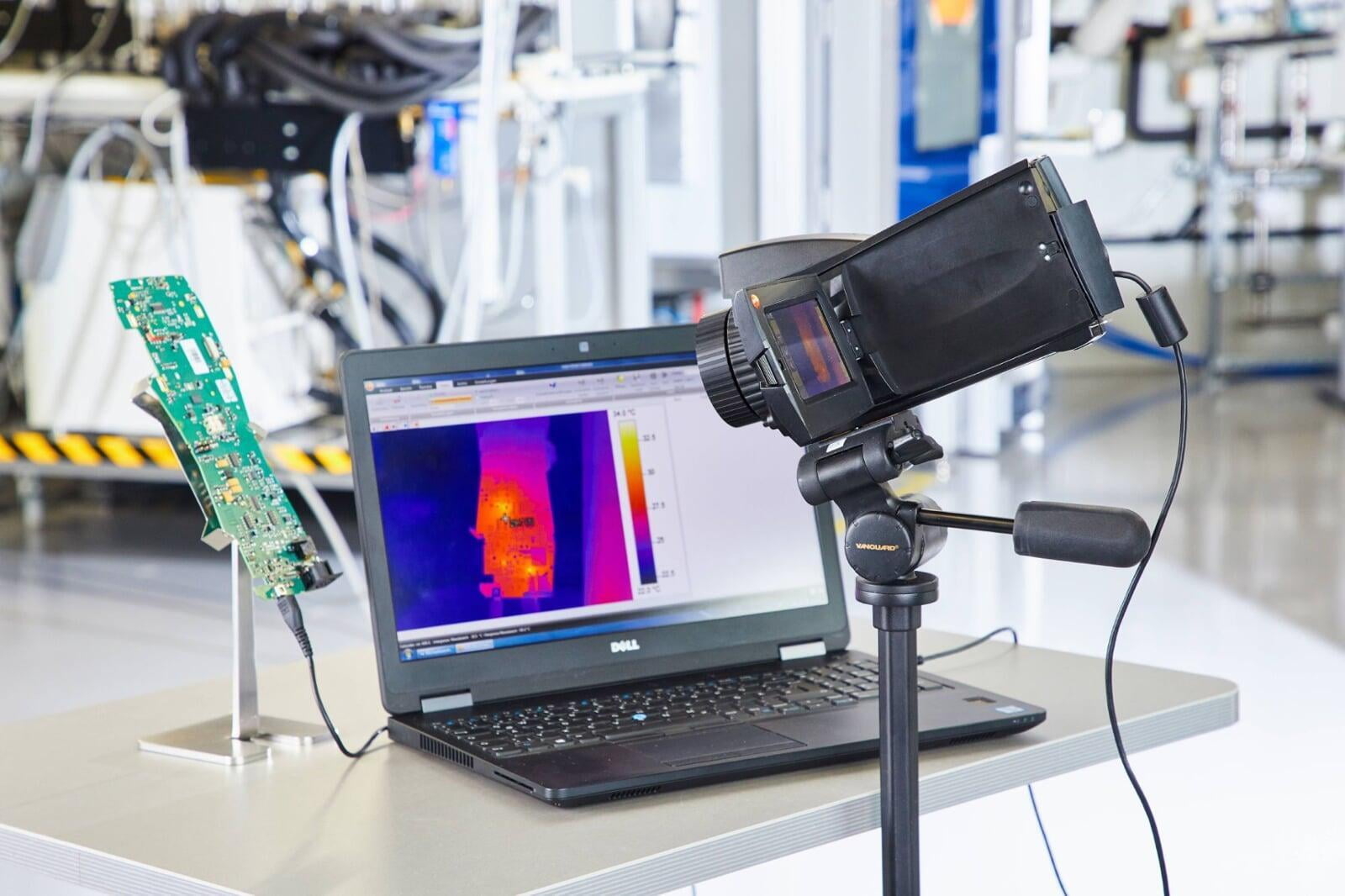

- Process analysis package (optional): the combination of fully radiometric video and sequence capturing in the instrument enables wireless measurement and easier handling at the measuring location

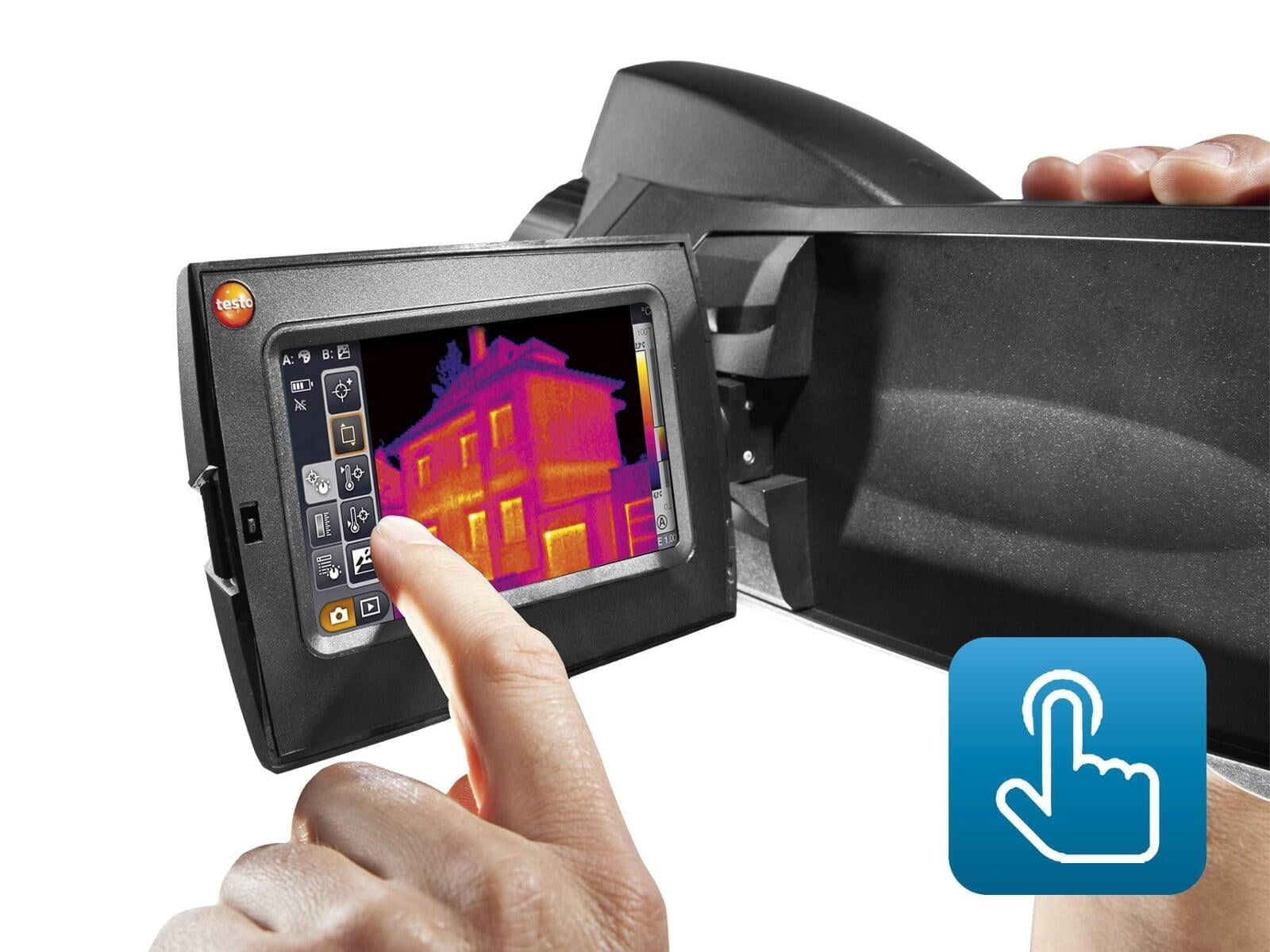

- The camcorder design with wrist strap, along with the rotatable, fold-out display, makes taking images considerably easier. This makes it possible for a wide variety of camera angles, as well as one-hand operation
- Panorama image assistant: individual images are combined into a panoramic image as soon as they are taken. This means, for instance, that you can take thermal images of entire building shells without having to laboriously compile them or assess them individually
- SiteRecognition technology: with similar measurement objects, the thermal imager identifies measuring locations immediately, assigns them automatically and archives them accordingly
- Voice recording (as comments on the images) possible with headset which is included in the scope of delivery
- Integrated digital camera with power LEDs: you can take well-lit, real images to go with every thermal image - making documentation and assignment easier
- FeverDetection (optional): use the assistant to check people for high body temperature in public places and in means of transport – for public health protection
- Exchangeable lenses optionally available (42° standard/wide-angle lens and 15° telephoto lens)
6.6° x 5° super-telephoto lens
- Compatible super-telephoto lens for the testo 890 thermal imager
- Small field of view (6.6° x 5°) for maximum resolution of particularly distant objects
- Easy to handle: no additional lens holder needed

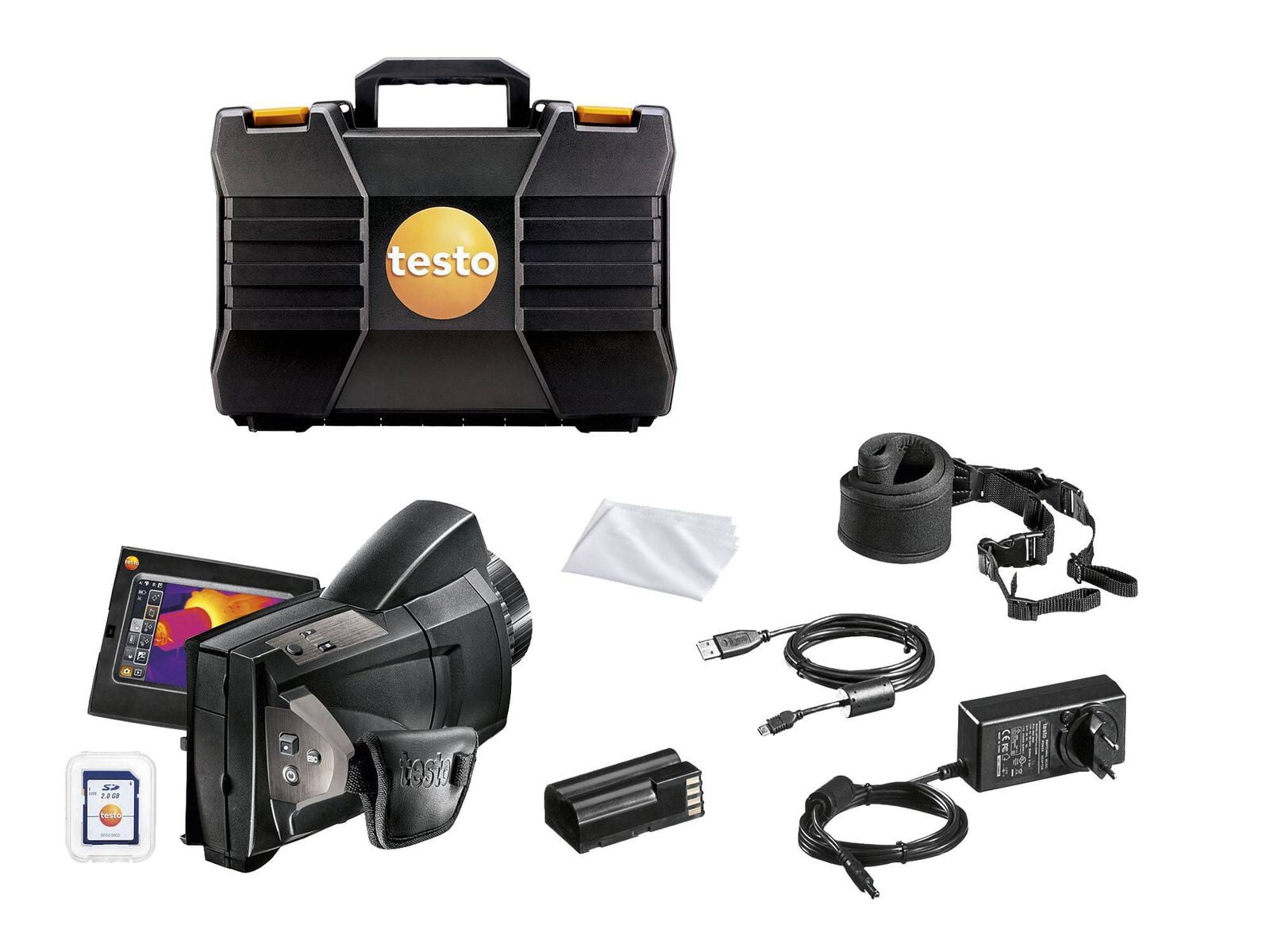

Delivery Scope
- testo 890 thermal imager with 6.6° super-telephoto lens and SuperResolution
- Robust case
- Pro software IRSoft (free download)
- SD memory card
- USB cable for data transfer to the PC
- Carrying strap for the thermal imager
- Lens cleaning cloth
- Mains unit
- Li-ion rechargeable battery
- Headset for voice recording
| Ambient Condition |
| Operating temperature | -15 to +50 °C |
| Storage temperature | -30 to +60 °C |
| Air humidity | 20 to 80 % RH non-condensing |
| Housing protection class | IP54 |
| Vibration | 2G |
| Image output visual |
| I mage size | 3.1 MP |
| Minimum focus distance | 0.5 m |
| Image presentation |
| Display type | 4.3" LCD touchscreen with 480 x 272 pixels |
| Digital zoom | 1-; 3-fold |
| Display option | IR image / real image |
| Colours | 9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo) |
| Video output | USB 2.0, Micro HDMI |
Imager equipment
| Power-LED | Included |
| Process analysis package | Optional |
| JPEG storage | included |
| Video measurement | up to 3 measurement points |
| Voice recording | Bluetooth****/wired headset |
| Panorama image assistant | Included |
| SiteRecognition | Included |
| Exchangeable lenses | 25° x 19°; 15° x 11°; 6.6° x 5° |
| Standard lens | 42° x 32° |
| Digital camera | Included |
| Interface | Labview; free download from hompage; USB |
| Fever detection | Optional |
| Laser | Laser marker |
**** Bluetooth only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Japan, Russia, Ukraine, India, Australia
| Imager storage |
| File format image | .bmt; export option in .bmp; .jpg; .png; .csv; .xls |
| File format video | .wmv; .mpeg-1; Testo format (fully radiometric video) |
| Storage device | SD cart 2GB (approx. 1500 - 2000 images) |
| Infrared image output |
| Spectral range | 7.5 to 14 µm |
| Infrared resolution | 640 x 480 pixels |
| Thermal sensitivity | ˂ 40 mK at +30 °C |
| Field of view | 42° x 32° (Standard lens), 25° x 19° (25° lens), 15° x 11° (Telephoto lens), 6.6° x 5° (Supertele) |
| Minimum focus distance | 0.1 m (Standard lens), 0.2 m (25° lens), 0.5 m (Telephoto lens), 2 m (Supertele) |
| Geometric resolution (IFOV) | 1.13 mrad (Standard lens), 0.68 mrad (25° lens), 0.42 (Telephoto lens), 0.18 (Supertele) |
| SuperResolution (Pixel) | 1280 x 960 pixels |
| SuperResolution (IFOV) | 0.71 mrad (Standard lens), 0.43 mrad (25° lens), 0.26 mrad (Telephoto lens), 0.11 mrad (Supertele) |
| Image refresh rate | 33 Hz |
| Focus | auto / manual |
*inside the EU, outside 9 Hz
| Measurement |
| Measuring range | -30 to +100°C; 0 to +350 °C (switchable); 0 to +650 °C (switchable) |
| High temperature measuring | +350 ... +1200 °C (not in connection with the telephoto lens) |
| Accuracy | ±2 °C, ±2 % of m.v. |
| Emissivity | 0.01; 1 |
| Reflected temperature | manual |
| Transmission correction | Included |
| Accuracy high temperature | ±2 °C, ±2 % of m.v. |
